Topcon gpt-9003A 3"tst.robotic w.fc-2200 contr/radiokit
GPT-9000 Reflectorless Series Robots!

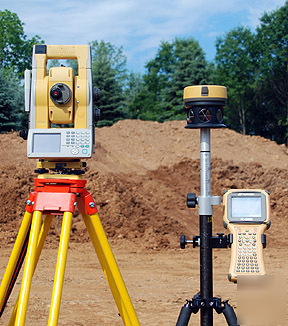

Topcon GPT-9003A 3" Total Station with FC-2200 Data Controller/Radio Robotic Kit (NO FCC License required!)
Demo unit in excellent condition ONE-MAN OPERATION system
I. The GPT-9003A is item #60428 Topcon GPT-9003A (3 sec.)
Retail price $13.390 Our Price 11,550
II. FC-2200 Controller/Radio Robotic Kit. Item #60638 S/N TPS100395 Age 2009
Retail price $9,600.00 Our Price$ 6,995
#60636 FC-2200 Controller, Serial #TPS100395, #60270 TopSURV 7 Robotics Software, #60618 RS-3 Radio S/N PK2099,
#60430 RC3 Sys.S/N #5U1922/5T1844, #60702 A7R 360 Prism, #60626 Pole Clamp for FC-2200, #500048 Open Pole Clamp,
#60218 Carbon Fiber Robotic Pole, #59010 TP-10 Wood Tripod, #60622 Cradle for FC-2200
III. EXTBAT-9000 External Battery System
Retail price $450 Our Price $325
$23,440.00 OUR PRICE (TOTAL) $18,870.00
The Topcon GPT-9000 Series total stations take the next step in the evolution of servo motor technology. Combining the latest servo motor and reflectorless pulse laser technology to provide the ultimate in surveying functionality and productivity. The 9000 series can be used in Auto-Tracking mode with one person at the gun. The rod person is automatically locked on by the gun. The instrument person simply hooks the data collector to the 9000 series and collects the shots as the rod person walks the site. In fully robotic mode the system can be operated quickly and easily by one person. The advantages of this system are numerous. One man operation eliminates the instrument person and allows for fast and accurate data collection and stakeout.
RC-3 Fast Trak System - Wireless operation ensures fast, simple aquisition of the GPT-9000 tracking beam. When jobsite obstacles disrupt the beam, FastTrak instantly re-aquires lock at the press of a button. Also offers optical communication (radioless) with the GPT-9000 series to eliminate radio problems.
FC-2200 - this Windows CE data collector offer powerful functions and easy to use menu to store and stakeout your information quickly and accurately. The built in RS-1 radio will interface seamlessly with the 9000 or 900 series providing long range robotic communication. With easy to use TopSurv7 software it's a winning combination.
Topcon's FC-2200: Full-featured, value-priced job site controller
The new, full-featured, alphanumeric, value-priced field controller the Topcon FC-2200
With a full keyboard, color, sunlight readable, touchscreen, built-in wireless connectivity for cable-free operation (Bluetooth and WiFi), 5 megapixel camera, and special bar code scanner, the FC-2200 is the most powerful alphanumeric controller on the market today. Main features include Windows CE-based architecture and an optional communication pack for robotic radio control or cellular communication.
The FC-2200 is a workhorse controller. The unit comes standard with a rechargeable battery, but can use alkaline batteries as a backup power source, easy-access USB flash drive adapter and 2GB of system flash. It raises the standard for job site controllers.
When in the field, you never know when you will need to take a high-resolution photo. The FC-2200 has a built-in quality, auto-focus camera. To make sure you have enough memory to take such high-quality shots, there s 2Gb of memory the largest by far in the industry that comes standard with the unit.
The screen and program are easily readable due to the large icons which are activated by a tap of the stylus. The icons are easy to understand and the array of functions are easy to learn.
- Built-in wireless Bluetooth , Wi-Fi and WLAN connectivity;
- Easily accessible USB flash drive adapter delivers memory expansion;
- RS-3 radio capable (optional to control GPT-9000A and Topcon IS imaging system);
- New, fully-sealed, field-tested, rugged design.
The FC-2200 data collector comes radio-ready. The unit included into this system(the one we are selling) in the latter model, the unit comes with an adapter on the back that can hold a robotic radio or other optional packs. The robotic radio can be ordered separately or part of a kit.
Additionally, the FC-2200 has TopSURV 7 module activated,Robotics
About Topcon Positioning Systems: Topcon Positioning Systems, a developer and manufacturer of positioning equipment, offers the world s leading selection of innovating precision GPS, GIS, laser, agriculture, optical surveying, nod machine control products, software, and applications.
3 seconds (Initial 4.0 seconds)
1.2 seconds (Initial 3.0 seconds)
0.5 seconds (Initial 2.5 seconds)
1.5 - 6 sec. (Init. 6 - 8 sec)
Liquid surface reflective profile
85 deg / second (Horizontal / Vertical)
2MB (Flash ROM) + 64MB (SD Card)
(A portion is used for pre-installed programs
and data management functions)
320 x 240 (QVGA) dots Graphic LCD TFT color display with
back lights and touch panel function. Single Display (2nd display: Option)
USB Type Mini-B for ActiveSync
Class II (FDA/BHR 21 CFR 1040)
IP54 (Based on standard IEC60529)
On-Board Lithium-Ion Battery - BT-65Q
(This battery does not contain mercury)
Maximum Operating Time at 20deg. C
Approx. 4 hours (with SS radio: 3 hours)
3.7" ~ 240 x 320 QVGA ~ Color TFT Transflective Type
1 x Type I / Type II (Memory and IO)
Spread Spectrum Radio (Option)
Operating: -20 deg. C to 50 deg. C
Storage: -30 deg. C to 60 deg. C
GTS-900A / GPT-9000A: 16.4 ft - 1312 ft
Protection Against Water & Dust
