> South bend heavy 10 10" lathe hard way 10" x 34"cc usa
South bend heavy 10 10" lathe hard way 10" x 34"cc usa
REVISED 10-21-2009 The machine quick change gear box feeds were incorrectly listed and the correct information is ( 70 ) ranges of Threads from 4 - 480 TPI
and the feeds are from 0.0007" ~ 0.0836" on the Longitudinal ( 70 ranges )
and the cross feeds are 0.0003" ~ 0.0303" on the cross slide ( 70 ranges )
** also a photo of the optional 4 Jaw Chuck is now included and the optional Taper Attachment @ $ 1,500.00 installed has been added to the list below ( no photo ). Thanks Paul
** revised freight quote to Colorado of $ 500.00 common carrier
ORIGINAL TOOLROOM CONDITION ( - CLEANED, RECONDITIONED & REPAINTED BY US )
* GREAT CONDITION MACHINE - Great for Proto Type / Toolroom / School / anything !
* COMPLETE WITH SOME ACCESSORIES - CHUCK- TOOLING - FACTORY CABINET BASE
* BUILT IN THE USA by SOUTH BEND LATHE
* QUALITY & RELIABILITY - THEY MAKE ALL THE DIFFERENCE
* GREAT PARTS AVAILABILITY - Very Easy to Operate & Maintain
* CAN BE INSPECTED UNDER POWER / LOADING FREE / CRATING EXTRA CHARGE
(1) Drive / Face Plate 6" Included ( see photo )

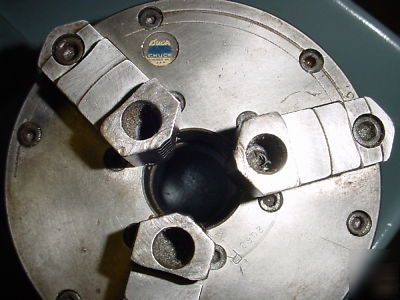

(1) 6" 3 Jaw BUCK Chuck - Adjustable Back - 2 piece jaws Hard Jaws Included
(1) D1-4 Camlock Style Spindle Included ( instead of threaded nose type spindle )
(1) 4 1/2 Foot Long Cast Iron Bed ( 54" Long Bed )
(1) 5C Handwheel Collet Closer Attachment with (8) 5C Collets Included
(1) Quick Change Threading & Threading Dial Included
(1) Longitudinal & Cross Power Feeds Included
(1) Large Style Cross Slide Dial reads on Diameter ( 0.200" / rev ) Included
(1) 110 Volt Safety Push Button Contactor for 3 Phase Motor for operation on 3 Phase 220 / 440 Volt Service
( * ) ( 1 Phase Motor at extra cost )
(1) Drill Chuck and Arbor Included
for this opportunity. At your request, we are pleased to offer the Used South Bend Toolroom Series Lathe for your consideration and approval:
1. Used, SOUTH BEND Model Heavy 10 10" x 34" cc Toolroom Lathe
following Standard Features and Specifications. ( Model CL 187RB 4 Ft Bed / Longest 10" Bed )
* Large Spindle is supported at 2 points by precision bearings
* Both Carriage and Cross Power Feed
* D1 4 Camlock spindle nose
* Inch threading without changing gears ( just gearbox levers )
* Hardened & Ground Bed Ways
* Swing over Cross slide 5 7/8"
* Center Distance 34" + cc with 4 Ft Bed
* Spindle Nose D1 4 Camlock Spindle
* Spindle RPM s ( 6 steps ) 105 ~ 1400 RPM
* Longitudinal Carriage Feeds ( 70 Steps ) .0007" - .0836"
* Cross Slide Power Feeds ( 70 steps ) .0003" - .0303"
* Threading 4 ~ 480 TPI ( 70 types )
* Tailstock Quill Travel 2 1/8"
* Motor 1 1/2 HP 3 Phase 220 Volt ( 1 phase convertors available at extra cost )
* 6" 3 Jaw Buck Chuck, reversible hard top jaws, Adjustable D1-4 Camlock Mounting plate
* 5C Collet Closer Attachment - Handwheel Type
* Both Carriage and Cross Power Feeds
* Motor in Factory Floor Base - vee belt drive to Flat Belt
* Dimensions 67" Long x 27" x 50" High
CONDITION: Very Good Condition. ( Machine has been reconditioned by our Service Dept. )
(1) Set of 5C Collet ( 17 pieces ) $ 440.00
(1) 6" 4 Jaw Chuck $ 600.00 ( see photo )
(1) Drill Chuck & Arbor Included
(1) Steady rest attachment $ 420.00
(1) Quick Change Tool Post & Holder Set $ 400.00
(1) Taper Attachment Installed $ 1,500.00
(1) 5C Factory Collet Rack with Bed Mount and Handwheel Holder $ 300.00
We appreciate this opportunity to quote your company and look forward to receiving your order and to servicing your needs, now and in the Future. Thank you for this opportunity.
Paul Terry , Sales Ph (***) 532-1112 Fx (***) 532-2581
BOSTON MACHINERY, INC. E Mail : ****@aol.com
119 Foster Street P. O. Box 271 Peabody, MA. 01960
PH: (***) 532-1112 FAX: (***) 532-2581
** All delivery dates are based on our best estimates at the time of quotation and can vary
responsible for. All Machines & accessories are subject to prior sale / or removal from sale.
** All specifications are subjection to change or typographical error. Please verify at
the time of your purchase. Thank You !
