Hp 8791 model 21 signal simulator system (reduced )

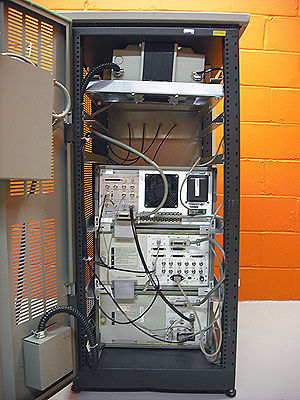

HP 8791 Model 21 Frequency Agile Signal Simulator
* HP Vectra VE 5/90 Computer (No Hard Drive Installed, No Monitor, No Mouse/ Keyboard)
* HP 86790B Modulation Data Source Multi-Channel
* HP 86791A Agile Carrier Synthesizer DC-50 Mhz
* HP 86792A Agile Upconverter 10-3000 Mhz
* Range: 0.05 to 18 GHz (to 40 GHz with upconversion)
* Switching Speed: < 100 ns typical over full 18 GHz BW
* Fast-Level Control Switching Speed: < 100 ns typical in 6.02 dB steps
* Output Power: +10 to 107 dBm
* Instantaneous Bandwidth: 40 MHz
* Formats: Arbitrary FM, FM, AM, Pulse, Frequency Hopping
Spurious Response: 55 dBc, typical
Phase Noise: < 110 dBc/Hz @ 10 kHz offset, 9.77 GHz, typical
