> Samsung sdp-900DX digital presenter projector excellent
Samsung sdp-900DX digital presenter projector excellent
Samsung SDP-900DX Digital Presenter Opaque Projector NICE
The Samsung SDP-900DX is a portable visual presenter with an auto-focus camera, computer interface and two different lighting sources. Digital Visual Presenter with Overhead and Underneath Light Sources, 12x Optical Zoom Camera 850,000 pixels PS CCD USB 2.0 for PC preview and capture with Memory Settings and XGA Output. The camera has special visualization features such as image freeze. It interfaces with computers through VGA connection and is compatible with both PC and MAC platforms.

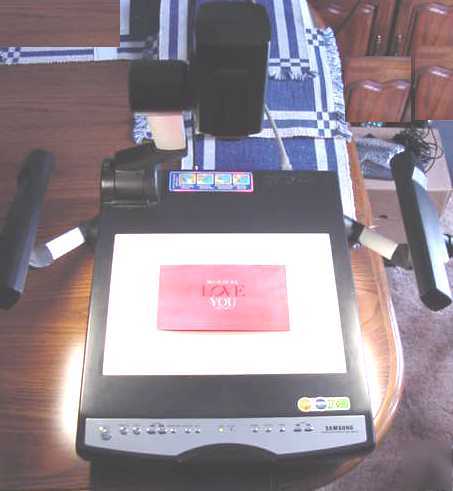

Samsung SDP-900DXN S# S3020853; Condition, Very Good: fully tested with video out (yellow RCA) to TV (not on any computer) working with some scratches and last owner info engraved on unit, no remote, no carry case, no manual, no mouse.
Click here for a link to a 5 sec movie, mpg of startup & auto color adjustment, part 1!
Click here for a link to a 5 sec movie, mpg of startup and full zoom, part 2!
The SDP-900DX has a camera that can be rotated for display of flat objects, 3D-art, transparencies and film negatives. The camera captures at 15 frames per second with 8 seconds of saved video and a freeze-frame feature. The 12x optical zoom lens lets you focus on small portions of a documents and objects without digital zoom degradation. There are 8 camera presets which can be stored locally for controlling zoom, focus, and aperture.
Computer Interface for Any Platform
This visual presenter can work with virtually any modern computer with a selection of interfaces. Data can be input via standard USB connection. It can be controlled through the computer using RS-232c or TWAIN software. Pull-down menus can be displayed and selected with just a touch of a mouse while screen writing or drawing can be done with an optional PS/2 mouse adapter.
The SDP-900DX has 2 light sources to evenly illuminate documents and other items from above. The base unit can be illuminated from beneath for transparent objects such as negatives and medical slides.
Application Medical, Scientific, Educational Signal System NTSC/PAL
Image Device 1/3" CCD Lens 6.3 to 74.4 mm, f/2.9
12x Optical Zoom Number of Pixels 850,000 Horizontal Resolution
Overhead and Underneath Lighting
Built-In Signal-to-Noise Ratio Not Specified By Manufacturer
Maximum Horizontal Field-of-View 72
Signal Connectors Composite Video: RCA (x1 Output)
S-Video: 4-Pin Mini DIN (x1 Output)
VGA: 15-Pin DIN (x2 Inputs, x2 Outputs)
Power Requirements 110-240 VAC, 50/60 Hz Power
Consumption 60W Operating Temperature 41-95 F (5-35 C)
Dimensions (WxHxD) 26.6 x 20.7 x 22" (67.6 x 52.7 x 55.8 cm)
Download Software Drivers & Manual at (Search for SDP900 under the support-download tab and use the drivers for the 900DX)
