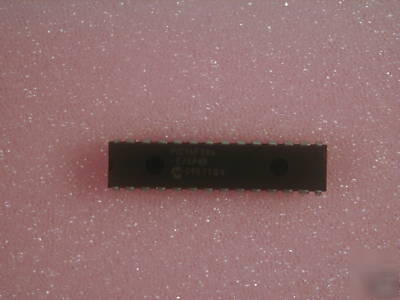

Microchip pic 16F886 e/sp flash-based 8 bit cmos 28 dil
Only 35 Instructions to Learn:
- All single-cycle instructions except branches
- DC 20 MHz oscillator/clock input
- DC 200 ns instruction cycle
Direct, Indirect and Relative Addressing modes
Special Microcontroller Features:
Precision Internal Oscillator:
- Software selectable frequency range of8 MHz to 31 kHz
- Crystal fail detect for critical applications
- Clock mode switching during operation forpower savings
Wide Operating Voltage Range (2.0V-5.5V)
Industrial and Extended Temperature Range
Power-up Timer (PWRT) and Oscillator Start-upTimer (OST)
Brown-out Reset (BOR) with Software ControlOption
Enhanced Low-Current Watchdog Timer (WDT) with On-Chip Oscillator (software selectable nominal 268 seconds with full prescaler) withsoftware enable
Multiplexed Master Clear with Pull-up/Input Pin
Programmable Code Protection
High Endurance Flash/EEPROM Cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/Data EEPROM retention: > 40 years
Program Memory Read/Write during run time
In-Circuit Debugger (on board)
- 11 A @ 32 kHz, 2.0V, typical
- 220 A @ 4 MHz, 2.0V, typical
24/35 I/O Pins with Individual Direction Control:
- High current source/sink for direct LED drive
- Ultra Low-Power Wake-up (ULPWU)
Analog Comparator Module with:
- Programmable on-chip voltage reference (CVREF) module (% of VDD)
- Fixed voltage reference (0.6V)
- Comparator inputs and outputs externally accessible
- External Timer1 Gate (count enable)
- 10-bit resolution and 11/14 channels
Timer0: 8-bit Timer/Counter with 8-bit Programmable Prescaler
- 16-bit timer/counter with prescaler
- Dedicated low-power 32 kHz oscillator
Timer2: 8-bit Timer/Counter with 8-bit Period Register, Prescaler and Postscaler
Enhanced Capture, Compare, PWM+ Module:
- 16-bit Capture, max. resolution 12.5 ns
- Compare, max. resolution 200 ns
- 10-bit PWM with 1, 2 or 4 output channels,programmable dead time , max. frequency20 kHz
Capture, Compare, PWM Module:
- 16-bit Compare, max. resolution 200 ns
- 10-bit PWM, max. frequency 20 kHz
- Supports RS-485, RS-232, and LIN 2.0
In-Circuit Serial ProgrammingTM (ICSPTM) via TwoPins
Master Synchronous Serial Port (MSSP) Modulesupporting 3-wire SPI (all 4 modes) and I2C Master and Slave Modes with I2C Address Mask
The device is a 24-pin Dual-In-Line package.
