Precision gram,force,tension gauge,dial push pull gauge

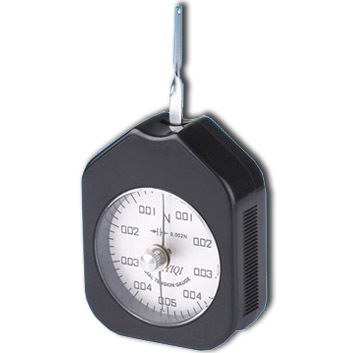

DTA-500G Gram Gauge/Force Gauge/Tension Meter
The Gram Dial DTA Series is an economical cantilever arm force gauge for testing tension and compression at right angles to the force. The compact size and cantilever arm configuration facilitate force measuring in limited access areas or small openings. The flat tip design offers line contact with the test object and incorporates a small hole for hanging calibration weights or for attaching other test objects to the gauge. Available in eight capacities, 5 to 500 grams. Peak hold is also available on all models.
1)TIP CONFIGURATION: Flat tip for line contact.
2)TENSION / COMPRESSION: Reads both clockwise and counterclockwise.
3)PEAK FORCE POINTER: Holds maximum force reading - avialable with all models.4)CALIBRATION: Small hole in flat tip permits accuracy checks with test weights.
4).DIAL DISPLAY: Large 1 1/2'' dial with easy-to-read graduations.
5)CAPACITY&ACCURACY: DTA-500G(100-500-100g&20g) DTA-300G(60-300-60g&10g) DTA-150(30-150-30&5G) DTA-100G(20-100-20g&5g) DTA-50G(10-50-10g&2G) DTA-30G(6-30-6g&1g) DTA-10G(2-10-2g&0.5g) DTA-5G(1-5-1g&0.2g)
NOTICE:Plz select the models according your need.If you have any problems or need,plz don't hesitate to contact me.Anita, ****@gmail.com
