Hp 85046B s-parameter test set
HP 85046B S-Parameter Test Set
The HP 85046B test set provides the capability to simultaneously measure the transmission and reflection characteristics of 75 ohm devices. The test set is controlled from the analyzer and includes programmable step attenuators. It is used with the HP 8753A/B/C or the HP 8753D/E Option 011 only. Provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection. Includes a programmable step attenuator Frequency range 300 kHz to 2 GHz Contains 75 ohm Type-N (f) connectors Max operating level 20 dBm Damage level 30 dBm RF Attenuation Range: 70dB

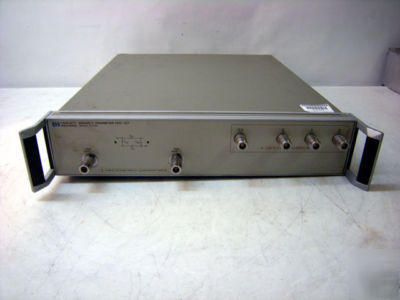

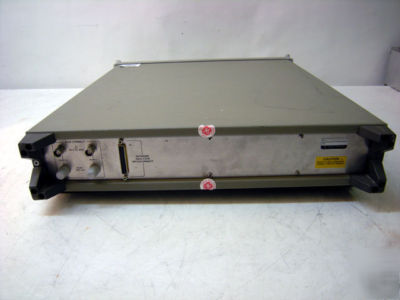

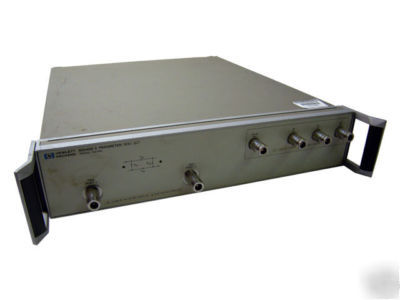

This is a used, HP 85046B S-Parameter Test Set
* Provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection.
* Includes a programmable step attenuator
* Frequency range 300 kHz to 2 GHz
* Contains 75 ohm Type-N (f) connectors
