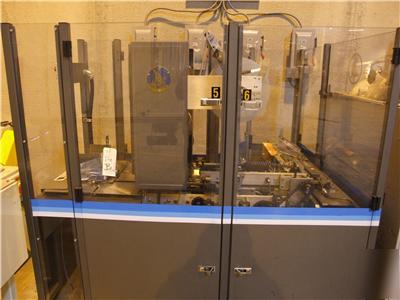

Scandia 626 dvd overwrapper
SCANDIA 626 DVD OVERWRAPPER Search
All 600 Series Models have been designed around the principle of Continuous, Progressive, Rotary Motion. A carton that enters the machine will complete the overwrapping cycle without the need of successive cartons.
The package is presented to the machine by an Automatic Infeed and transferred to the Feed Chain. The package is carried through the vertically fed web of film and enters the Side Folding and Sealing Section. The film on the leading edge of the carton is tucked by the stationary Side Tuckers mounted to the package track then folded and heat sealed. After reaching the end of this section, the package is transferred 90 degrees to the Crossfeed Assembly, where the final folding and sealing of the envelope fold on the trailing side is completed. The package then exits the machine.
Film is cut from the film roll, by a Rotary Knife cutting against a Stationary Knife, immediately after the carton has engaged the film are both are trapped between bottom and top plates for positive film positioning.
