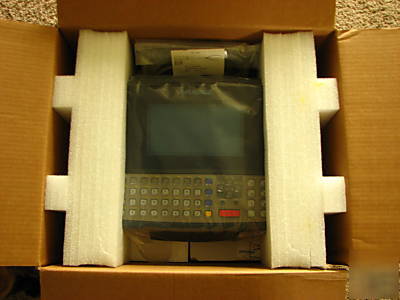

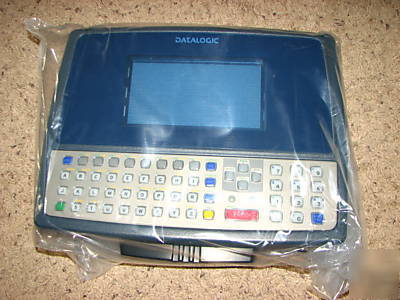

New datalogic rhino vehicle mount computer - rare
The Rhino Vehicle Mount Computer (VMT or VMC) is a rugged, vehicle-mounted, DOS based PC capable of wireless communications from a fork-lift truck or any properly configured vehicle. The unit uses a PCMCIA radio (spread spectrum 2.4GH.z or other) for wireless data communications.

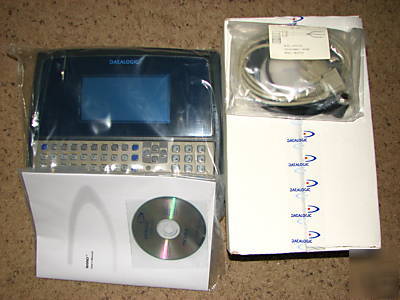

Mounting kit to secure the terminal to the mounting bracket
Serial cable for configuration activities through PC direct connection
* The Rhino LCD Display is a monochrome LCD unit capable of supporting CGA graphics mode. The display size is 640 X 200 pixels. The Rhino has an integrated, custom keyboard with ABCD layout and universal overlay. The keyboard features a 57 keys. The keyboard is constantly illuminated, and has 101 functions, including a numeric keypad.
* The Rhino has two PCMCIA slots. They support the Personal Computer Memory Card International Association 2.1 standards. Slot A and B accept Type I, II, or III 5V PCMCIA cards. In particular, the Radio Ready base model accepts some of the most diffused radio cards, such as CISCO, SYMBOL, LUCENT, ARTEM.
* Vehicle power input for the Rhino can range from 11 to 75VDC and is accepted without the need to perform any adjustments within the Rhino.
Interfaces - 2 RS232-C Serial interfaces; COM2 with barcode option
Network - WLAN, 802.11b (Wi-fi)
Frequency range - Country dependant, typically 2.4 to 2.5 GHz
Dimensions - 320 X 250 X 90 mm
Weight - 4 Kg Approx (excluding mounting bracket)
