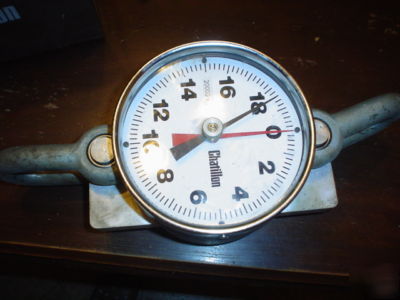

Chatillon TD5-20000 dynamometer scale (20,000 lb)
CHATILLON TD5 Series mechanical dynamometer may be used as a weighing tensiometer or crane scale. This precision weighing instrument features an easy-to-read 5-inch (127 mm) dial face with shatter-resistant dial cover in a strong aluminum housing. Available with pound dial face, the TD5 Series accuracy is better than 1% of full scale. A manually engaged clutch freezes the pointer at its maximum reading for exact reading of peak weight. Needle bearings in shackles prevent brinneling under heavy loads and eliminate shackle misalignment. Mechanism sealed against dust and dirt. Oiling not required. Dynamometer is supplied with a Certificate of Calibration with Data traceable to NIST.
Chatillon's TD5-20000 dynamometer features a high capacity of 20000 pounds in 200 pound weighing increments.
Chatillon's TD-5 is a rugged dynamometer offering top performance for measuring tension, traction and weight at multiple work locations. Their sturdy C-beam design, cast aluminum housing and shatter resistant dial make them ideal for demanding applications. TD-5 dynamometers feature 5-inch dial with high visibility markings for quick observations. Maximum reading pointer captures peak reading and may be reset manually prior to next use. Maximum reading pointer tension is adjustable to maintain accuracy under varying test conditions. Needle bearings in the shackles prevent distortion under heavy loads plus helps to eliminate shackle misalignment. Chatillon dynamometer's dial face may be positioned with zero directly under shackle or in a custom orientation. Available in pounds only and comes with carrying case.
* 5-inch dial with 100 graduations for maximum readability
* Accurate to 0.5% of capacity traceable to NBS
* Maximum reading indicator retains peak load, manual reset
* Integral zero adjustment accommodates tare loads up to 20% of capacity without affecting accuracy
* Capable of sustaining overload of 25% capacity
* 4X safety factor using standard hooks and shackles
* Zero position directly below the top shackle
* Factory adjustment for other zero positions available
* Lightweight design for transportability
