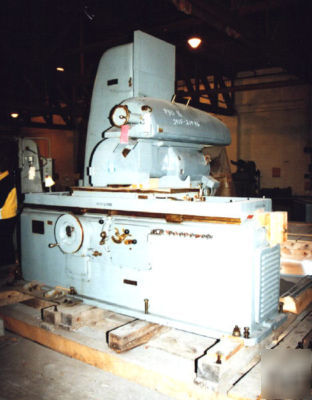

12" x 48" thompson hyd-fd horiz-spdl surf grinder 18655
12" x 48" THOMPSON HYDRAULIC-FEED
New 1951, Serial No 4C514021, Model C,
Table Working Surface, W x L........... 12" x 48"
Grinding Width Capacity, Maximum....... 12"
Grinding Length Capacity, Maximum...... 48"
Table Longitudinal Travel.............. 56"
Grinding Wheel Hole Diameter........... 8"
Grinding Wheel Surface-Feet-Minute..... 6000 SFM
Table Longitudinal Feeds, Range........ 10 to 100 FPM
Power Down Feeds, Range................ .00025 to .004 IPR
Power Rapid Table Traverse............. 240 IPM
Power Rapid Vertical Traverse.......... 15 IPM
Hydraulic System Motor................. 5 HP/1175 RPM
Motor, Horsepower...................... 15 HP
Floor Space Required, L x D............ 13'3" x 7'4"
Overall Height......................... 8'7"
Weight, Approximately.................. 17300 LBS
CONDITION: As Taken Directly from Government
PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00
