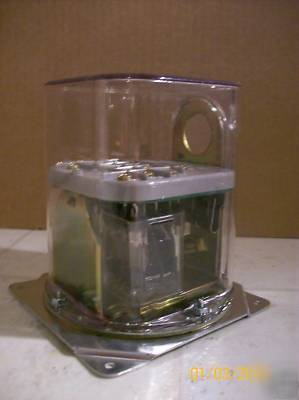

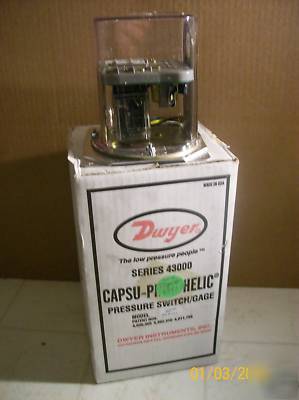

Dwyer capsu-photohelic pressure switch gage 43000
DWYER CAPSU-PHOTOHELIC PRESSURE SWITCH GAGE CIRCUIT HH SERIES 43000
Capsu-Photohelic Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic gage design. The Capsu-Photohelic switch/gage employs an encapsulated sensing element for use with both liquids and gases at pressures to 500 psig (34 bar). Optional cast brass case is available for water or water based liquids. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust setpoint indicators are controlled by knobs located on the gage face. Individual setpoint deadband is one pointer width less than 1% of full scale. Setpoints can be interlocked to provide variable deadband ideal for control of pumps, etc.
