Tooling plate or fixture moore machinist toolmaker wow


PRECISION SUB-PLATE OR FIXTURE. USA AMERICAN TOOLMAKER MADE AND NONE NICER EXCEPT OUR OTHERS LISTED BY SAME MOORE TOOLMAKER!

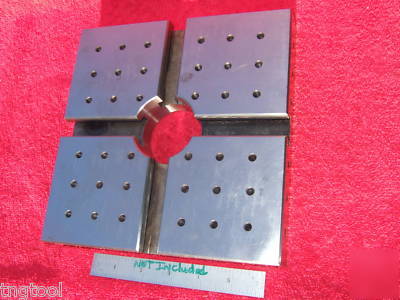

FIXTURE PLATE MEASURES 1.418" THICK X 7.953" SQUARE . SUB PLATE OR GRIND FIXTURE HAS (36) BLIND TAPPED 1/4" X 20 HOLES IN PLATE ON THE TOP FACE AND (6) ON EACH FACE FOR A TOTAL OF (60) TAPPED 1/4" X 20 HOLES AS SHOWN. TOP PLATE THEN HAS A T-SLOT IN MIDDLE. FOOT IS 3/8" X 1"+ WITH .353" ABOVE IT AND 5/8" WIDE SLOT. T-SLOT T-NUTS FROM OUR BRIDGEPORTS FIT RIGHT IN! PLEASE CHECK SINCE THIS WAS USED ON A MOORE MACHINE IT MAY REQUIRE SPECIAL T-NUTS? IN THE VERY CENTER OF THE PLATE IS A JIG-GROUND CENTER HOLE 2.135" CLEAR THROUGH THE PLATE. GROUND FLAT PARALLEL AND SQUARE ON ALL SIDES TO .0002" ACCORDING TO TOOLMAKER AND THIS CHECKS MUCH BETTER. IT IS VERY NICE AND CLEAN! EXCELLENT USED TOOLMAKER MADE MOORE JIG GRIND FIXTURE PLATE AND MORE ARE LISTED IN OUR STORE.
