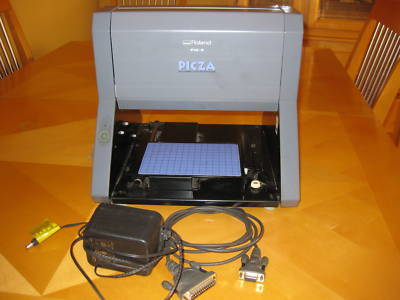

Roland picza pix 4
PICZA scanners bringpowerful 3D scanning to the desktop at an affordable price. PIX-4 useRoland Active Piezo Sensor technology for extremely hi-precision scanning.Complete with 3D scanning software, both scanners create wire-frame models usedfor 3D prototyping, computer graphics and animation, and product development.
R.A.P.S. - Roland Active Piezo Sensor (RAPS) technology eliminates thedrawbacks of conventional contact-type 3D scanners. It scans data withhair-splitting precision, picking up even the most minute shape variations.Minimum scanning pitches for the PIX-4: X/Y-axis direction 0.002 to0.197 inches settable in steps of 0.002 inches, Z-axis direction 0.001 inches.
Scans Almost Anything - The PICZA scans a wide range of objectsincluding soft objects like clay and fruit that conventional contact scannersfind very difficult. PICZA can even scan glass, impossible using opticalscanners because the light beams passes through the object without detecting it.
Easy Does It - With only a power switch, the PICZA takes all of itsinstructions from Dr. PICZA software. Even people inexperienced at 3D CAD designcan scan clay shapes for use in professional-quality computer graphics orproduce any handicraft.
Dr. PICZA Software - Dr. PICZA allows for complete control of the scanarea, including X-Y scan resolution. As the PIX-4 scans an object, itcreates wire-frame models on the fly. Color rendering, mirroring and invertingfeatures are also included along with the ability to export files to popular 3Dcomputer graphics and CAD programs.
Lots of Formats - PICZA scans are stored in DXF, STL, BMP, Grayscale(BMP), 3DMF and VRML file formats for use in a wide range of applications.
(152.4 mm [X] x 101.6 mm [Y] x 60.5 mm [Z])
Roland Active Piezo Sensor ( R.A.P.S. )
Contacting, mesh-point height-sensing
X/Y-axis direction - .002 to .200" (0.05 to 5.00 mm) settable in steps of .002" (0.05 mm) Z-axis direction - .001" (0.025 mm)
XY-axis - 1.181"/sec (30 mm/sec.) Z-axis - .354"/ (9 mm/sec.)
DXF, VRML, STL, 3DMF, BMP, Grayscale,Point Group
Exclusive AC adapter ( DC + 12V 1.5A )
Standby mode : under 40 dB (A) Scanning mode : under 50 dB (A) ( According to ISO 7779 )
12.324'' (W) x 11.97''(D) x 10.868'' (H))
(313 mm (W) x 304 mm (D) x 276 mm (H))
AC adapter : 1, Serial Cable : 1, Specialty Software Suite #RSP-009
