Faulhaber motor + gearhead + encoder combo - 70 rpm 6V

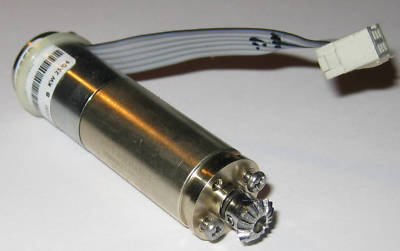

Faulhaber Motor + Gearhead + Encoder Combo - 70 RPM - Crown Gear Drive
* Miniature Motor/Gearhead combo
* Faulhaber DC Micromotor Model No. 1524 006
* Faulhaber Gearhead: 15/5S
* Faulhaber Encoder: HES164A
* Removed from working equipment - excellent condition
* Gearhead gear ratio: 141:1
* Gearhead construction is all steel gears lubricated with heavy duty grease
* Two sets of mounting holes are provided on the end of gearhead (set 1 is 2 threaded holes M2 while set two is two threaded holes 2-56 UNC)
* Motor comes with a 15 tooth crown gear mounted on the shaft
* 3" long leads terminated with a 6 pin female plug
* Pin 2: Encoder V+ (5V)
* Pin 3: Encoder Channel A
* Pin 4: Encoder Channel B
* For specification sheet of motor, please click this LINK (PDF - 83 kB)
* For specification sheet of gearhead, please click this LINK (PDF - 65 kB)
