24KW brushless sae # 3, 11.5 flex generator-alternator

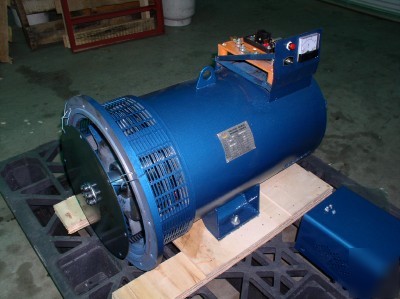

24kw Brushless SAE # 3, 11.5 flex Generator-Alternator
Model Number TFDW 24 Brushless Generator
* To get proper SAE Bell housing and Flex plate, see the chart above
* 1) XD (MEASURED INSIDE THE LIP)
* 2) XB (BOLT HOLE CENTER TO CENTER MEASURED ACROSS THE DIAMETER)
* 3) EX (FLEX PLATE DIAMETER OR THE INSIDE DIMENSION OF THE SAE FLYWHEEL RECESS CUT TO ACCEPT THE FLEX PLATE.
* 4) XG ( PLACE A STRAIT EDGE ON INSIDE LIP AND MEASURE TO THE FLYWHEEL RECESS FOR FLEX PLATE.
* 4 Wire, can be wired in series for 120/240
* Windings wired in Parallel for:
* Please check the chart enclosed to determine your bell housing number and flex plate number.
* Box on top can be removed when using as a replacement generator.
