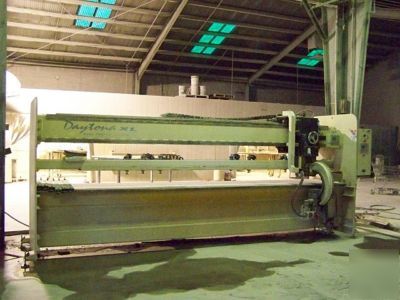

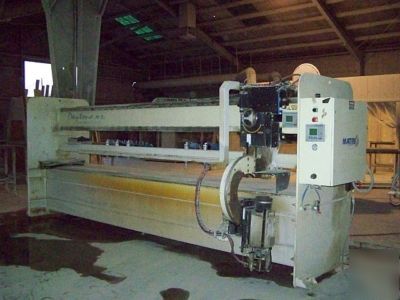

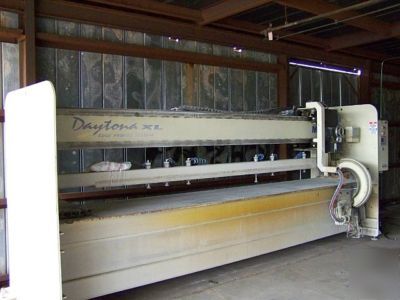

2006 martix daytona xl automatic edge shaper & polisher
FOR SALE IS A BANK OWNED 2006 MATRIX DAYTONA XL AUTOMATIC EDGE SHAPER AND POLISHER. SERIAL # 04262006260. THIS UNIT NEEDS ABOUT 4K WORTH OF WORK.
Here is some information i got from manufacturer of this unit:
MACHINE DIMENSIONS 205"L; 58 "W; 82"H.
REQUIREMENTS 230 VAC, 3 Phase, 30 Ampres, City Water, Hose
Bibb Connection, 80 PSI Air @ 2 SCFM.
STONE CAPACITY 3/4" - 4.0" Thickness.
GRINDING LENGTH 6" Minimum, 144" Maximum.
RADIUS CAPACITY 0" - 2" Radius.
CARRIAGE BRIDGE Steel Construction Stress Relieved Precision
Stainless Steel Precision Guide Ways.
CARRIAGE DRIVE Servo Motor Controlled, Rack and Pinion Drive,
Variable Speed, 3"-30"/Second, .005" Left/Right Positioning
Accuracy, Left/Right Over Travel Protection.
POLISHING MOTOR 3 H.P. Center Water Feed, 1500/3400 RPM, 2-Speed Selectable 4" or 5" Snail Lock; 5/8" - 11 Male Thread Pneumatic Head w/Pressure Gauge, 2" Pneumatic Head Travel.

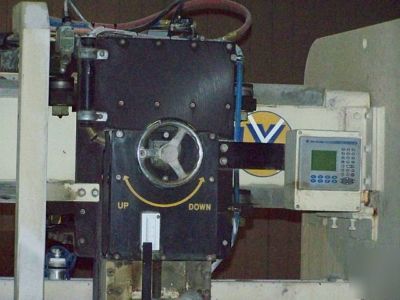

MAJOR SLIDE 4" Travel Up and Down, Dovetail Guideway System.
INDEX RING Stainless Steel Precision Ways, Hardened V-Roller Bearings.
INDEX DRIVE Servo Motor Controlled, Rack and Pinion Drive, 0-180 Degree Positioning, Index Accuracy; 1/10th Degree.
TABLE CLAMPING 36" x 192" Rubber Top Work Surface, 6 Adjustable Pneumatic Clamps, Integrated Support for Long Pieces.

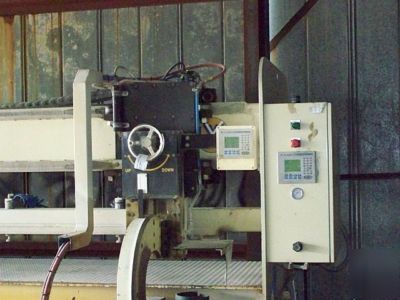

OPERATOR CONTROLS Pre-Programmed Profile Selection, Operator Creatable Programs, Automatic Degree Location Selector, Automatic Left/Right Position Sensing, Programmable Number of Passes for Flat Work, Annunciator Notifies Operator when Disc Change is needed.
