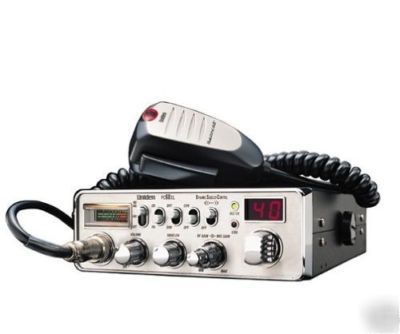

Uniden pc-68XL bearcat pro series 40 channel cb radio
UNIDEN PC-68XL BEARCAT PRO-SERIES 40 CHANNEL CB RADIO.
* Classic 2-way CB radio with sleek silver chassis and chrome control knobs
* Operates on 40 FCC-approved AM frequencies; offers instant access to emergency channel 9
* Dynamic squelch control reduces noise to produce clear, legible signal on every channel
* Front-positioned microphone with extra-long coiled cord; adjustable RF and mic gain controls
* Adjustable LED channel display; measures 6.29 by 2.16 by 8.54 inches (W x H x D); 2-year warranty
* CB frequency range: 26.965 to 27.405 MHz
* Frequency control: Phase Locked Loop (PLL) synthesizer
* Input voltage: 13.8 VDC nominal (positive or negative ground)
* Transmitter power output: 4 watts
* Hum and noise: Better than 40 dB
* Frequency tolerance: +/- 0.002 percent
* Modulation percentage (peak): 100 percent
* Spurious rejection: -70 dB
* Output impedance: 50 ohm, unbalanced
* Receiver sensitivity: 0.5 uV @ 10 dB
* Selectivity: o.5 uV @ 500 mW audio output
* Receiver audio output power (max): 5 watts
* Receiver audio output (10% distortion): 4 watts
* Selectivity @ 6 dB down: 7 kHz
* Adjacent channel rejection: 60 dB
* Internal speaker impedance: 16 ohms
* External speaker impedance: 80 ohms
* Current drain @ no signal (max): 0.375 A
* Public address output power (10% distortion): 4 watts
* What's in the Box: PC68XL CB radio, microphone, mounting bracket kit, DC power cord, reference guide, FCC rules, product registration card, user's manual.
PLEASE BEWARE THAT THIS MODEL IS A BIT DIFFERENT THAN THE PC-68 LTW!! (THE LTW HAS WEATHER CHANNELS AND BACKLIT KNOBS!! (THIS MODEL DOSN'T HAVE WEATHER CHANNELS AND BACKLIT KNOBS)
??? QUESTIONS= PLEASE EMAIL ME!!
