Agilent power supply E3646A

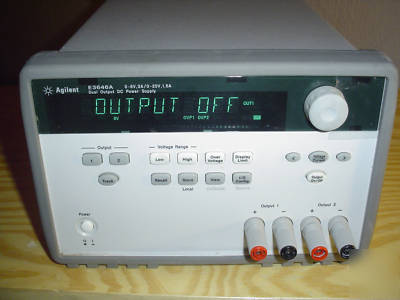

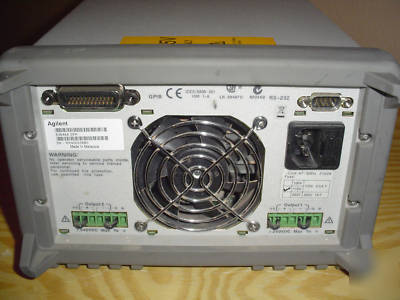

Agilent E3646A DC power supply.
Output Ratings (@ 0 C to 40 C) 2 Outputs
* Range 1: 0 to 8 V / 3 A
* Range 2: 0 to 20 V / 1.5 A
Programming Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
* Current: <0.2% + 10 mA
Ripple & Noise 20 Hz to 20 MHz
* Normal Mode Voltage: <5 mVpp / 0.5 mVrms
* Normal Mode Current: <4 mArms
* Common Mode Current: <1.5 uArms
Readback Accuracy (@ 25 C 5 C), (% output + offset)
* Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
* Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
