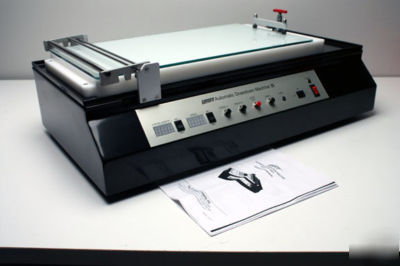

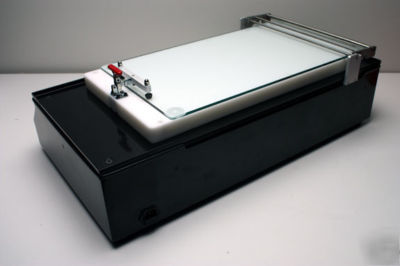

Gardco automatic drawdown machine - ii
Designed for precise application of films or coatings on films and other substrates, this Gardco drawdown machine is seldom seen on the secondary market and in especially excellent condition.
* Input power: 115VAC, 5 amps, 60 Hz
* Speed Range: 1 to 18 inches per second (IPS) in .1 IPS increments
* Jog Speed: 3 inches per second
* Stroke Length: .1 to 16 inches in .1" increments or manual
* Controls: digital microprocessor based
* Max Load: 25 lbs Drive Load: 19 lbs @ 1 IPS, 12 lbs at 6 IPS, 3 lbs @ 12 IPS, 2 lbs @ 18 IPS.
* Working surface: 12 x 18" glass with manual clamp.
Note: applicator accessories are NOT included with this machine.
28-3/4"W x 16-1/2"D x 10-3/4"H inches, including protrusions.
