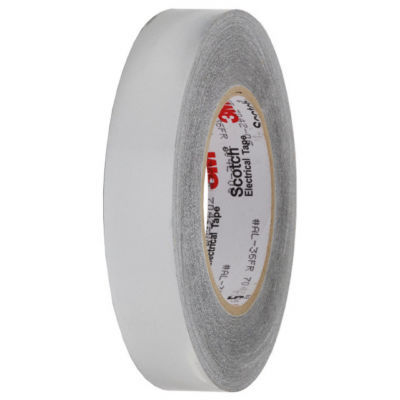

3M aluminum foil conductive emi shielding tape 1" x 3'
Polyester Film-Laminated Aluminum Foil with Conductive Acrylic Adhesive
This tape is 1 inch wide and 3 feet (1 Yard) in length (long); therefore, the picture doesn't match the length of this item.
This is a New item from 3M that has not been cut at all.
3M Tape AL-36FR consists of polyester film- laminated aluminum foil and unique electrically conductive pressure-sensitive acrylic adhesive.
PET-laminated aluminum foil backing
UL recognized for flame retardancy per UL 510, Product Category OANZ2, File E166244.
3M Tape AL-36FR is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing and for insulation on top of the foil backing. Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc.
Many factors determine the true shielding effectiveness of a shielding tape, including type and thickness, adhesive strength, degree of contact, smoothness of application surface, strength and frequency of the EMI signal, etc. However, using standard tests and fixtures, it is possible to determine a value for the attenuation
