36" chk 25HP spdl blanchard #18 - 36" chk rotary surfac
36" Chk 25HP Spdl Blanchard #18 - 36" Chk ROTARY SURFAC
36" Chuck 25HP Spindle Blanchard #18 - 36" Chuck ROTARY SURFACE GRINDER

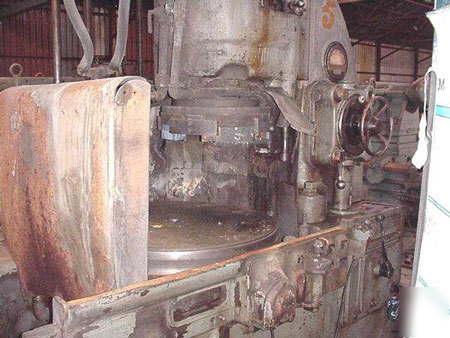

36" BLANCHARD ROTARY SURFACE GRINDER
MODEL: #18-36 S/N: 6107 NEW: 1946
CHUCK DIAMETER .................................... 36"
SWING INSIDE GUARDS ............................... 39"
HEIGHT UNDER NEW WHEEL ............................ 12"
MAX. WEIGHT OF WORK LOAD ON CHUCK ........... 2,000 LBS
GRINDING WHEEL DIAMETER ........................... 20"
WHEEL SPEED ................................... 720 RPM
CHUCK SPEEDS (6) .......................... 6 TO 33 RPM
INF. VARIABLE POWER DOWNFEED ...... 0.004" TO .080" IPM
APPROX. DIMENSIONS ....................... 105"L X 61"W
APPROX. WEIGHT ............................. 13,000 LBS
25 H.P./3/60/220-440 VOLT SPINDLE MOTOR
36" ELECTRO-MAGNETIC CHUCK W/NEUTROFIER CONTROL
WHEEL HEAD HAS RAPID RAISE AND LOWER INTERLOCKED W/FEED
