Self contained refrigeration pre-piped ready to install

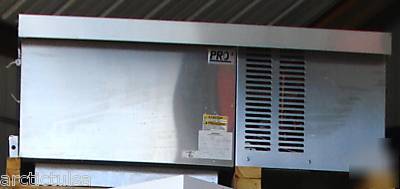

Plug and Play Totally Self Contained Refrigeration Unit!
If you need to replace a compressor or cooling coil, then consider replacing the entire system with the Climate Control Pro Pack from Arctic, bringing you a simple and reliable walk in refrigeration solution in a single package.

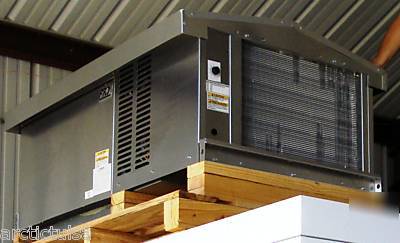

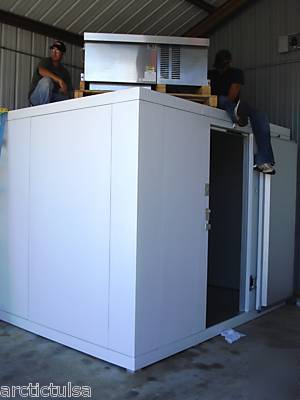

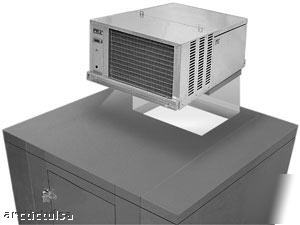

This system comes to you ready to mount on top of the walk-in with minimal space required. There is no cooling coil hanging down inside the walk in, taking up space. With the unit offered here, the cooling coil is located outside the walk-in, all neatly tucked away inside the refrigeration unit.
Everything inside the refrigeration unit is already pre-piped and charged for you with the latest approved refrigerant, R404 Freon. Even the condensate run off is handled on our unit with a condensate disposal system that evaporates the water removed from the unit, so no drain line is needed. All controls and even the thermostat are built in and pre-wired. You cannot make this any easier!
All you need to provide is at least 2 foot free air clearance in a conditioned space directly above the refrigeration unit, with free space around the top of the walk-in to provide plenty of breathing room for the compressor to discharge the heat removed.
* Equipped with the latest approved refrigerant, R404a
Electronic controls provide accurate temperature control
Easy to install with no piping or loose components to install, saving you money!
Installation only takes a fraction of the time required when compared to a split system

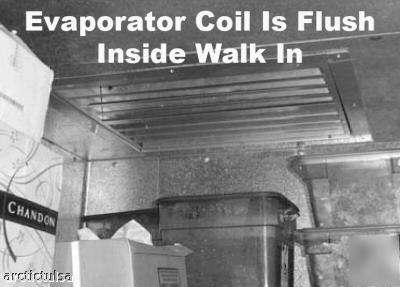

Evaporator grill mounts flush on or recessed in a standard 4" thick ceiling panel allowing you to store more inside!
Two years factory parts warranty
PTN050H6A unit is 115V with power cord should be on a dedicated electrical circuit. This unit is for indoor use only and sized for an approx 6x6x7 indoor walk in cooler with product entering at and holding product at +35 degrees. Smaller or larger units are available for both Indoor and Outdoor refrigeration systems
NOTE: There are no "one size fits all" refrigeration unit. It is critical to contact us prior to purchasing to assure you're purchasing a unit that will be large enough to handle your needs. The unit offered here is for a typical 6x6x7 walk in cooler with product entering the walk in at +35 degrees at a 90 degree surrounding temperature at the refrigeration unit.
Also note that you must provide plenty of "free air" space around the refrigeration unit. The unit cannot be mounted in an enclosed area such as above a drop ceiling or above a lay-in ceiling grid. This unit should have at least 2 feet between the top of the refrigeration unit and the ceiling immediately above the refrigeration unit. Otherwise, the unit will not operate and will over-heat. Over heating is not covered by warranty. If you do not have enough "free air space" on top of the walk in, you may want to consider our side mounted refrigeration system, which is also totally self contained, pre-charged and wired.
Contact us prior to ordering so we can select the best unit for your application.
IMPORTANT FREIGHT INFORMATION:
