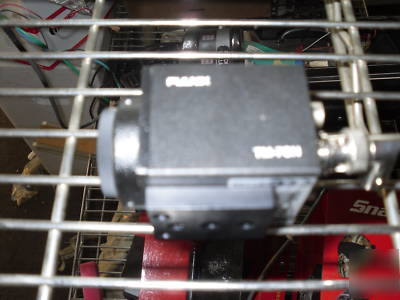

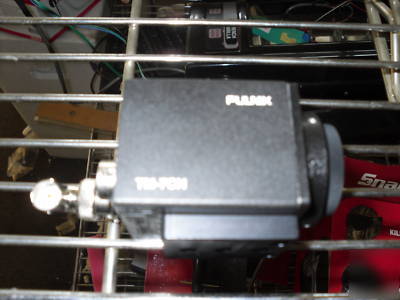

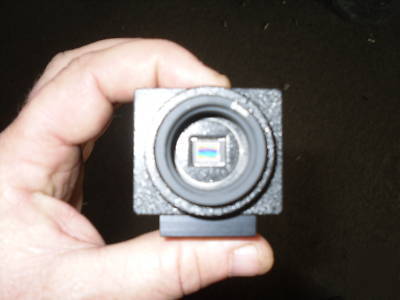

Pulnix tm-7CN camera with mounting bracket
Used good working condition with mounting bracket
The TM-7 Series offers the highest resolution interline transfer 1/2" CCD imager available to date, in a very tiny package. Designed to meet a variety of application requirements, these four camera models have many standard and optional features. The most commonly needed adjustments gain, gamma, AGC, and field/frame selection are easily accessible on the rear camera panel (excepting the super-miniature TM-7X). Shutter capability is another standard feature of this series. Each camera model is available in both EIA format (the TM-7 Series) and CCIR format (the TM-6 Series).
The "CN" and "EX" versions allow for the external selection of eight different shutter speeds (1/60 sec. to 1/10,000 sec.), by attaching the SC-745 Shutter Controller to the 6-pin connector located on the rear of the camera. Pixel clock output is a standard feature on the "CN" version; this function is optional on the TM-7X.
Asynchronous shuttering is the key feature of the TM-7AS, which also offers a rotary select switch to control shutter settings. The "AS" and "EX" versions accept external sync. Offering the tiniest package yet for location in small areas, the mini-cylindrical TM-7X features all input and output functions over a single, flexible cable. All cameras are C-mount; the "CN" and "EX" models include auto iris outputs.
The miniature size of the TM-7 Series cameras eliminates the need for a remoted imager camera in all but the most confined spaces. These cameras fit easily, both physically and functionally, into all types of machine vision, automated inspection, and related applications. Other uses include remotely piloted vehicles, miniature inspection devices, surveillance, microscopes and medical equipment.
Int./ext. auto switch fH+15.734 KHz 5% fV+59.94 Hz 5%
ON/OFF back panel switch (16 dB std., 32 dB max.)
K25-12V, DC-12N, PD-12 or PD-12P ("CN" model)
3-1,3-2,7-1,7-2,21,25,27, 49,60
3-1,3-2,4-1,7-1,7-2,21,25, 27,49,60
