> New edwards PV40PKA right angle isolation valve
New edwards PV40PKA right angle isolation valve

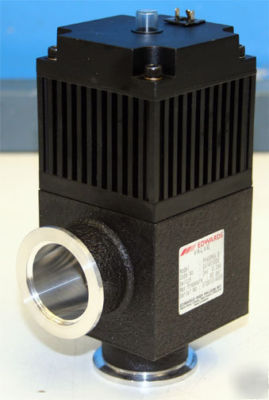

Edwards High Vacuum PV40PKA B Right Angle Isolation Valve New
Right-angle isolation valve, pneumatic, bellows sealed, aluminum body
The range of single acting cylinder, spring return pipeline valves is designed for high speed actuation from standard pneumatic lines, and are offered in sizes NW10, 16, 25, 40 and 50. The NW16, 25, 40 and 50 versions of the valve are available in both right-angle and in-line styles, to give you more options when you design your vacuum system.
The valves are designed for long life duties, with a MTTF of 5,000,000 cycles for both bellows and O ring sealed versions providing long intervals between services.
* Improved lifetime, mean-time-to-failure now 5,000,000 cycles
* Right-angle and in-line versions available
* Fast acting - 20 ms to close (PV16)
* Available in aluminum or stainless steel
* Choice of bellows or O ring shaft sealing with aluminum bodies
* Bellows sealed valves 100 grease free vacuum
* Optional control valves available in a wide range of operating voltages
* Valve and microswitch bakeable to 100 Celsius
* The PVPK valves have been improved and now feature a mean-time-to-failure of 5,000,000 cycles for even longer life.
* The range of single acting cylinder, spring return pipeline valves is designed for high speed actuation from standard pneumatic lines, and are offered in sizes NW10, 16, 25, 40 and 50. The NW16, 25, 40 and 50 versions of the valve are available in both right-angle and in-line styles, to give you more options when you design your vacuum system.
