New brand super heavy duty 1/4" x 60" hydraulic shear

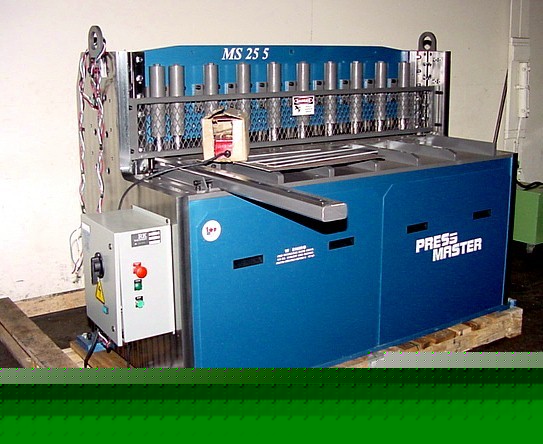

BRAND NEW SUPER HEAVY DUTY 1/4" x 60" HYDRAULIC SHEAR
PRESSMASTER MODEL MS-25-5 HYDRAULIC SHEAR
This is probably the highest quality shear made!
See this machine shearing 1/4" mild steel
by cutting and pasting this link into your browser:
http:// /watch?v=uGjskADgzxk
CUTTING CAP. ........................ 1/4"
CUTTING LENGTH ...................... 60.375"
RAKE ANGLE .......................... .250 PER FT.
SPM ................................. 18
NUMBER OF HOLDDOWN CYLINDERS ........ 10
MOTOR ............................... 10 HP 1760 RPM
VOLTAGES AVAILABLE .................. 230/460/575
TABLE DEPTH ......................... 24.875"
TABLE WORK HEIGHT ................... 35.500"
FOOTPRINT ........................... 83" LX 37"W
WEIGHT .............................. 6,200 LBS.
HYDRAULIC FLUID...................... 42 GAL.
- LOW SPEED ELECTRIC MOTOR & LOW HYDRAULIC WORKING
- REMOTE FOOT PEDAL CONTROL, IF RELEASED ANYWHERE
IN THE STROKE THE CROSSHEAD RETURNS TO "UP" POSTION.
- BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
- TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH 5 DEG.
BACK-BEVEL TO ENSURE A CLEAN CUT.
- LOW RAKE ANGEL TO MINIMIZE WORKPIECE DISTORTION.
- SQUARING ARM C/W MEASUREMENT INDICATOR.
ARE ROUNDED, ALSO PREVENTING DAMAGE WHILE LOADING.
- RACK & PINION PARALLEL DRIVEN MANUAL BACK-GUAGE
- FULLY ENCLOSED CONTROL PANEL C/W LOW VOLTAGE
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD
IN THE INDUSTRY, & AVAILABLE THROUGHOUT NORTH AMERICA.
AVAILABLE AT EXTRA COST OPTIONS:
- A MOTORIZED FRONT OPERATED BACK GAUGE, WITH DIGITAL
READOUT AND FINE HANDWHEEL ADJUSTMENT. THIS DIGITAL
READOUT FEATURES FRACTIONS OR DECIMALS AND AN
INCH/METRIC SWITCHABLE DISPLAY......$5,000.00
