> Macbeth color-eye 3100 lab grade spectrophotometer
Macbeth color-eye 3100 lab grade spectrophotometer

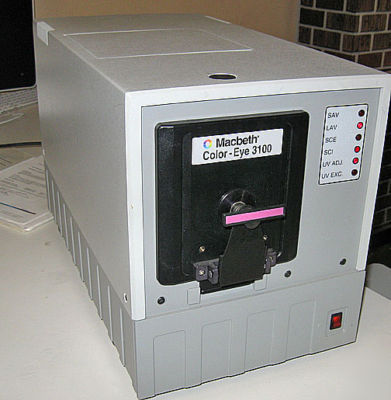

Macbeth Color-Eye 3100 Laboratory Grade Spectrophotometer
NIST Calibration sticker from 1999. Due for calibration in 2001.
The Color-Eye 3100 provides the versatility of both transmission and reflection color measurements at an affordable price whether your process is incoming inspection, in-process evaluation and color formulation, or final inspection.
Some of the benefits you'll gain with the Color-Eye 3100 include:
agreement of readings between instruments allow accurate data communication adjustable UV ensures precise control of whiteness and brightness variable measurement apertures from 25 mm to 5 x 10 mm let you measure a wide range of samples pulsed xenon light source provides the ultimate in reliability
Repeatability - Typical 0.02 RMS DE, Maximum .10 RMS DE Interinstrument Agreement - Typical 0.12 Avg. DE, Maximum 0.20 Avg. DE Illumination - Pulsed Xenon Measurement Time - 1 second Spectral Range - 360 nm to 740 nm Wavelength Accuracy - .2 nm Wavelength Interval - 20 nm Band Pass - 20 nm triangular Photometric Range - 0 to 200% Aperture - Large 1", Small 0.2" x 0.4" Optical Configuration - Diffuse /8 Degree with a 6" diameter integrating sphere
For more info, download the pdf here: 3100.pdf
