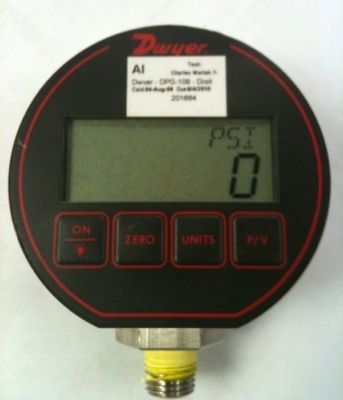

Dwyer 0-100 psi digital pressure gage - great condition
DWYER Series DPG-100 Digital Pressure Gage - 1 to 1000 PSI Range
Service: Compatible liquids and combustible gases
Housing Material: Black Polycarbonate front & back cover, anodized aluminum extruded housing with recessed grooves, Polycarbonate overlay, Buna-N O-Rings, 316L SS sensor construction.
Accuracy: 0.25% of Full Scale (2.50 psi)
Enclosure Rating: Designed to meet NEMA 4/4X (IP66)
Temperature Limits: 0 to 130 F (-18 to 55 C)
Between 70 to 130 F is 0.016%/F
Between 32 to 70 F is 0.026%/F
Between 10 to 32 F is 0.09%/F
Size: 3.00" OD x 1.90" Deep (Max)
Process Connection: 1/4" Male NPT
Display: 4 digit (.425" H x .234" W digit)
Power Requirements: Two AAA batteries (Included)
Battery Life: 2000 hours typical; Low battery indicator
Gage: 60 minute auto shut-off (may be disengaged)
Backlight: 2 minute auto shut-off
