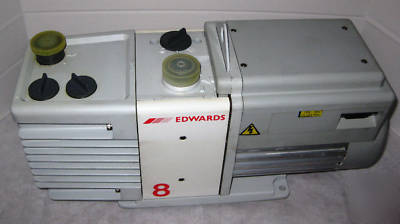

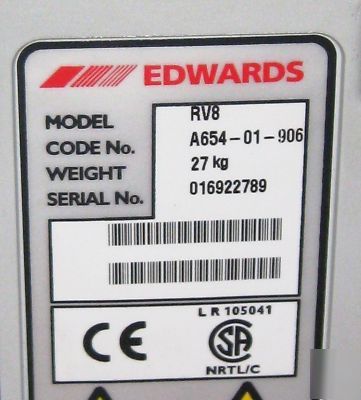

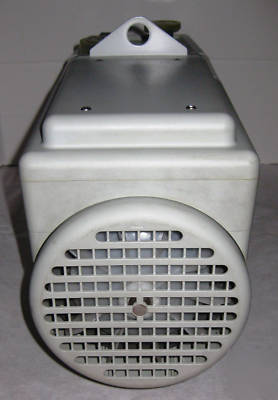

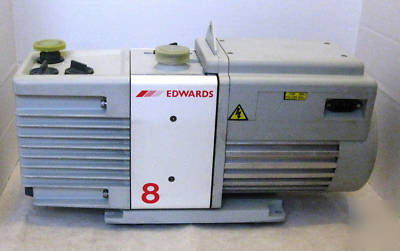

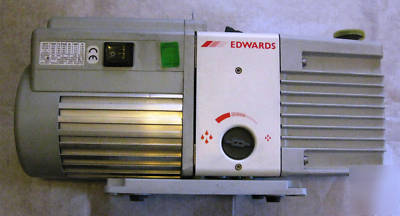

Boc edwards RV8 vane vacuum rotary pump
We just had this pump checked by an authorized Boc Edwards dealer
so you will know that this is working perfectly.
Please look at all the pictures as some of the standard info may not match
Peak Pumping Speed 60 Hz: 5.9 cfm / 50 Hz: 8.5 m3/h
Ultimate Pressure 60 Hz: 1.5 x 10-3 Torr /50 Hz: 2.0 x 10-3 mbar
Ultimate Pressure GB I 50/60 Hz: 2.3 x 10-2 Torr /3.0 x 10-2 mbar
Ultimate Pressure GB II 50/60 Hz: 4.6 x 10-2 Torr / 6.0 x 10-2
High Throughput Mode 50/60 Hz: 2.3 x 10-2 Torr /3.0: 10-2 mbar
Water Vapor Tolerance 38 Torr /60 mbar
Water Vapor Capacity - GB I 60 g/h 60 g/h
Water Vapor Capacity- GB II 220 g/h

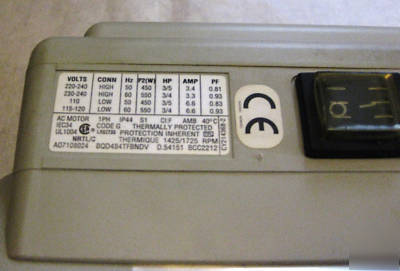

Motor Rating 1 Phase (Nominal) : 60 Hz: 550 W 50 Hz: 450 W
Motor Rating 3 Phase (Nominal Rotating Speed) : 60 Hz: 1800 RPM 50 Hz: 1500 RPM

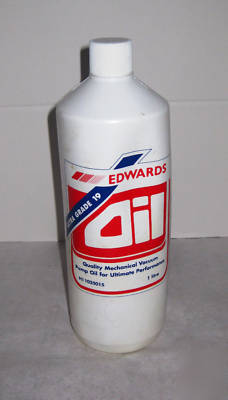

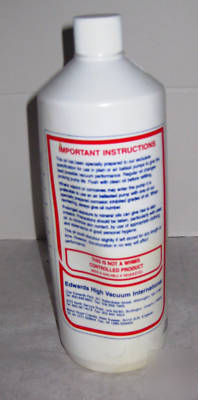

Oil Type (Ultragrade) : 19 included
Operating Temperature: 12 to 40 C
