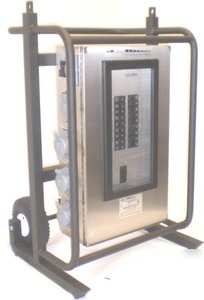

6210DC 3-phase power panel - 100 amp direct hard wire
Heavy-Duty 3 Phase Power Distribution Panel on Cart are designed to break down 3 Phase 120/208V power into 208V 3 Phase, 250V Single Phase and/or 125V Single Phase power.
The power supply input may be a direct wire feed, 100A pin and sleeve, or cam type devices.
Either a large generator or another large power source may power them.
These panels may be set up to act as the feeder for the smaller spider type boxes or wired for powering large equipment.
The cart is made of heavy gauge tube steel and provides an easy means of transportation as well as protection for the enclosure.
The enclosure is custom built from 16 gauge stainless steel sheet metal.
100Amp l20/208V Main Breaker, Input - Direct Wire , Output Receptacles: 10 # 5-20R 20Amp 125V Straight , 2 # L6-30R 30 Amp 250V Twist-Lock.
* Clear breaker panel window
* Easily stack-able heavy duty car
* This item can also be purchased without the cart.
