Gas vibratory plate compactor 6.5 hp water tank /wheels

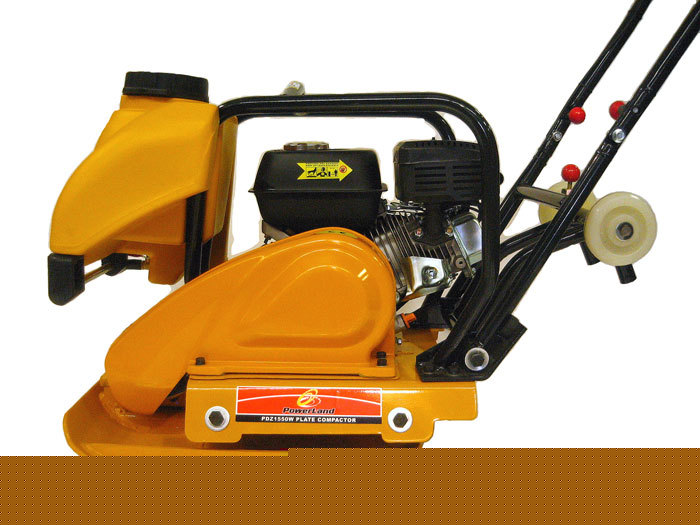

Vibratory Plate Compactor with water tank and wheel kit
Most suitable for compacting narrow confined area. Most ideal for finishing asphalt, sand and sloping surfaces. This model equipped with a water tank and sprinkle system which will definitely increase machine's efficiency. Attached wheel kit will make the machine's transportation much easier.
* Effective base area: 25 X 18 inch (620 X 450 mm)
* Vibration frequency: 6500
* Travel Speed: Max. 60 foot /min
* Climb ability: 0 ~ 20 degree
* Impact force: 15KN (33,675 lb force)
* Compaction area: Max. 3229 ft2 / hr
* Compaction depth: Max. 7.90 inch
* Max. Power: 4.8 kw (6.5HP) / 3600rpm
* Engine Type: OHV25 Tilt single cylinder, forced air cooling, 4 stroke
* Fuel tank capacity: 1 US gallons (3.6L)
* Oil capacity: 20 fluid oz. (0.6L)
* dimension: 25.6(L) X 19.3(W) X 27.6(H) inch
One year factory quality warranty
