Filtrine pcp-33 lab recirculating process laser chiller

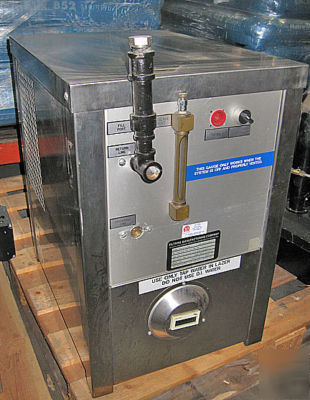

Filtrine PCP-33-3A-SSC Process Chiller
Closed-Loop, Air-Cooled, Self-Contained, Stainless Steel Cabinet
Has a 1/3HP compressor and 1/3HP pump
Digital temperature gage in the front (Taylor 9900) shows -40 to 120 F
This is marked 120v, single phase, but it looks like it was hard wired, so I can't test it in any way.
Please visit the manufacturer's webpage for more details: http:// /site/index.html
DESCRIPTION: Recirculating chillers recirculate a clean coolant at constant temperature and pressure to increase the stability and consistency of water cooled machines and instruments. Air cooled chillers eliminate the use of tap water and prevent clogging and corrosion of small diameter heat exchangers due to rust and scale build-up.
PCP -Closed Loop Chillers Use a storage type cooling tank to provide close temperature control of recirculating coolants. The tank is sealed to prevent coolant evaporation and fouling, and supplied with a liquid level gauge, fill port and clean out. The pump recirculates coolant at constant pressure and flow, which is adjustable by turning a manual bypass valve.
