51" Table 5HP Spindle Supermax YC-2GS VERTICAL MILL, Vertical & Horizontal #40 Taper Spindles, Feeds

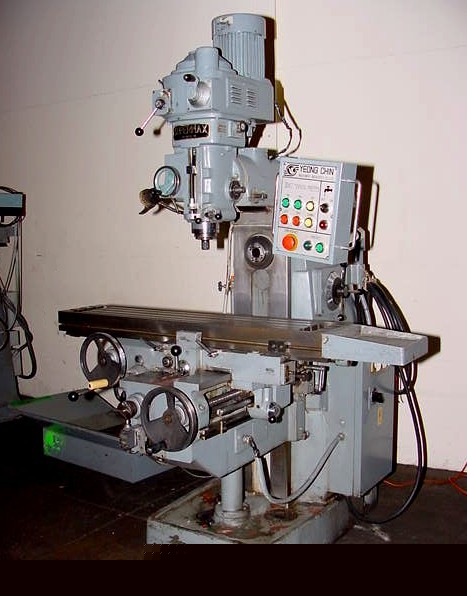

SUPERMAX HEAVY DUTY COMBINATION HORIZONTAL/VERTICAL MILLING MACHINE
MODEL YC-2GS, S/N: 041058, NEW: 1983
w/ INDEPENDENT MOTORIZED SPINDLES,
TABLE WORKING SURFACE ............. 11" X 51"
NUMBER OF T-SLOTS ................. 3
LONGITUDINAL ................ 39-3/8"
CROSS ....................... 17-1/2"
VERTICAL, KNEE .............. 17-3/4"
QUILL ....................... 5-1/2"
LONGITUDINAL & CROSS FEEDS (12) ... 1/2 TO 23-3/4 I.P.M.
RAPID TRAVERSE RATE, LONG & CROSS . 118 I.P.M.
RAPID TRAVERSE RATE, VERTICAL ..... 31-1/2 I.P.M.
RAM TRAVEL ........................ 21-1/4"
TURRET ROTATION ................... 360 DEGREES
APPROXIMATE WEIGHT ................ 5,700 LBS.
HEAD TILT, LEFT AND RIGHT ......... 45 DEGREES
QUILL DIAMETER .................... 4-3/8"
POWER QUILL FEEDS (3) ............. 0.0015, 0.003, 0.005 IPR
INF VARIABLE SPEEDS, (2 RANGES) ... 85-3,800 R.P.M.
TAPER ............................. #40 N.S.T.
MAX/MIN DIST, SPINDLE NOSE TO TABLE 21-7/8" / 4-1/8"
SPEEDS (20), TWO GEARED RANGES .... 49 - 1,300 R.P.M.
- HARDENED AND GROUND SQUARE WAYS
- SELF-CONTAINED COOLANT SYSTEM
- MANUALLY OPERATED LUBRICATION SYSTEM
- 5 H.P. 3/60/220-440 VOLT HORIZONTAL SPINDLE DRIVE MOTOR
WITH FORWARD/REVERSE ELECTRICAL CONTROLS
- 5 H.P. 3/60/220-440 VOLT VERTICAL SPINDLE DRIVE MOTOR
