> 1991 reid 618-hr "rollerway" (made in usa) surf grinder

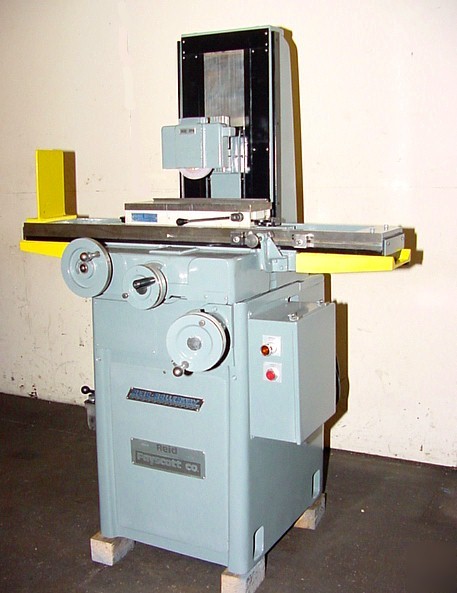

1991 reid 618-hr "rollerway" (made in usa) surf grinder
1991 REID 618-HR "ROLLERWAY" (MADE IN USA) SURF GRINDER
6" X 18" REID "ROLLERWAY" PRECISION (MADE IN USA)
MODEL: ROLLERWAY S/N: 30330 NEW: 1995
WORK CAPACITY ................................ 6" X 18"
WORK HEIGHT (UNDER 7" WHEEL TO TABLE) ......... 14-3/4"
MAXIMUM LONGITUDINAL TRAVEL ....................... 20"
MAXIMUM CROSS TRAVEL ............................... 7"
FLOOR SPACE .......................... 71" X 46" X 68"H
APPROXIMATE WEIGHT .......................... 1,525 LBS
ROLLER BEARING TABLE W/ADJUSTABLE TENSION
6" X 18" "O.S. WALKER" "CERAMAX" FINE-DIVISION PERMANENT
1-1/2 HP 3/60/230-460 VOLT REID "SUPER-PRECISION"
MACHINE IS PRESENTLY WIRED FOR 440 VOLTS
MACHINE WAS TAKEN APART, THOROUGHLY EVALUATED, SERVICED, CLEANED AND PAINTED
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
