Tft panel driver card (connects svga to tft panel)

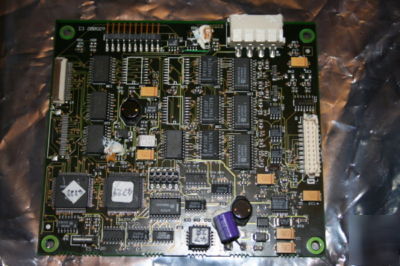

We do not know who has manufactured these cards, but they were stripped from equipment where they were controlling Hitachi TX26D86VC1CAC 10.2" TFT colour LCD screens.
They have a 22 pin minature IDC type connection which is the video in from a graphics card, and a 36 way minature flat ribbon type connector which goes to the panel. Also a standard disc drive type power connector.
Used extensively in embedded systems and industrial process controllers, these types of card are usually capable of driving a wide range of panels.
These are as new, removed from new and unused equipment that had to be broken under a security agreement for parts.
