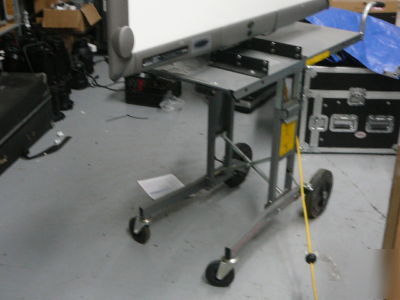

3M 9200 ic projection interactive white board w/cart
* Display Screen 60" diagonal, easy erase screen surface; 4:3 aspect ratio; 48" W x 36" H
* Viewing Angle 170 horizontal, 170 vertical
* Optical Structure Single 0.7" , DLP Texas Instruments Incorporated technology, XGA (1024 x 768)
* Keystone Adjustment Optically corrected, electronic for fine adjustments
* Throw Ratio Distance/Diagonal: 755 mm/ 1524 mm = .5
* Contrast Ratio 300:1 typical; 200:1 minimum
* Lamp Life 1600 Hours typical
* Dimensions 47.6" H x 53.2"W x 7.0"D (1208 mm x 1350 mm x 179 mm)
* Wall-to-screen 7.05" (18cm) including mounting bracket
* Weight Approx. 85 lbs. (39 kg.)
* Video Compatibility NTSC, PAL, SECAM, 720P
* RGB Compatibility VGA to SXGA; 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
* Computer Input VGA, DVI-I (DVI-D and DVI-A)
* Video Input Component, S-video, Composite
* Audio in 2 RCA jacks, 1 x 3.5 mm stereo mini jack
* Audio out RCA jacks loop-through (with delay adjustment)
* Serial Control 9 pin D-Sub, RS-232
* Audio amp 20 Watts per channel
* Speakers 2 x 20w stereo 8
* Power Requirements Input 100-240 VAC, 50/60 Hz, 3 Wire Grounded, 355 W. max
* Operating 10 - 35 C, 10 - 85%RH, without condensation
* Storage -10 - 60 C, 10 - 85%RH, without condensation
* Attitude 0 - 6000 feet above sea level
* Regulatory UL, CE, FCC Class A, CISPR Class A
* Menu System On-screen menu system; operable with or without remote
* Presentation Tools Reveal, Blank, Pointer, and Time
