Vickers TA1919 drive pump for bobcat with $1100 core
You must clean out the drive motors and hoses and replace the hydraulic oil and filter when installing this pump. When a drive pump fails, some of the metal shavings can be washed into the drive motor. If this pump is replaced without having the contamination removed from the system, you can end up with the same problem you were trying to fix. Damage caused by contamination from your system is not covered in our 12 month warranty.

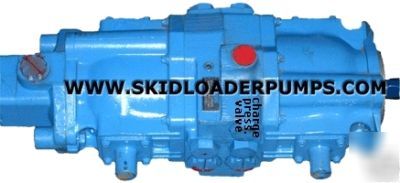

This pump is an assembly that consists of the right and left side drive pumps and the vane pump on the front supplies the hydraulic circuit that does the lifting and dumping. It is used in many Bobcat skid steer loaders including models 630, 631, 632, 641, 642, 643, 730, 731, 732, 741, 742, 742B before serial number ****18000, 743, and 743B before serial number ****18000.
This pump replaces many bobcat part numbers including 6558724, 6648981, 6630101, 6630535, 6560208, 6648980, 6630534, and 6660948. The reason for all the different part numbers is a minor design change, different numbers for new and rebuilt pumps, and different charge pressure settings for older machines.
The charge pressure spring is the only item that is important. There are several ways to identify the correct pump for your machine, your machine serial number, the charge pressure spring length, or the number stamped into the aluminum housing close to where it bolts to the center port block section.
Late This pump has a light yellow spring 2 3/8 inch long and a 13/16 inch recess inside the plug. Vickers numbers stamped in may be 451809 or 567686.It is used in the following machines:
742B before serial number 18000
743B before serial number 18000
Early This pump has a 1 15/32 inch long spring. The plug does not have a recess inside. Vickers number 451808 or 567685 is stamped into the housing. It is used on the following machines:
641 before serial number 13208
642 before serial number 13405
642B before serial number 31103
643 before serial number 13523
741 before serial number 14999
742 before serial number 14999
743 before serial number 14999
Very Early This pump has a 1 15/16 inch spring and the plug has a .095 plus or minus .015 deep counterbore for the spring. It is used on the following machines:
630 before serial number 12999
632 before serial number 12999
This pump has been rebuilt to new specs and has been run on a test bench to check performace. It has a 12 month warranty.
We will be happy to provide detailed information for your machine if you have any questions about flushing the hydraulic system or installing this pump.
