Ridgid 1822 pipe threader machine

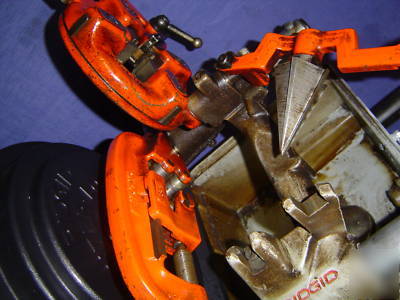

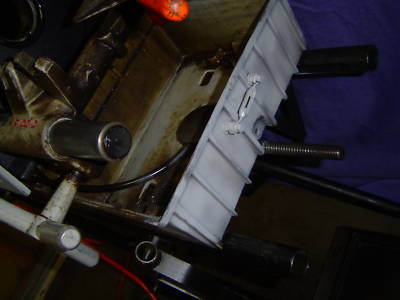

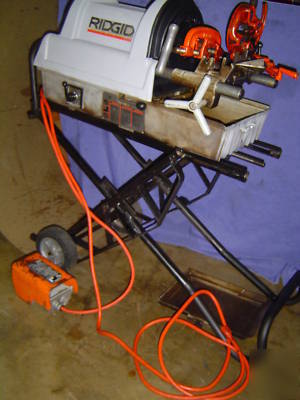

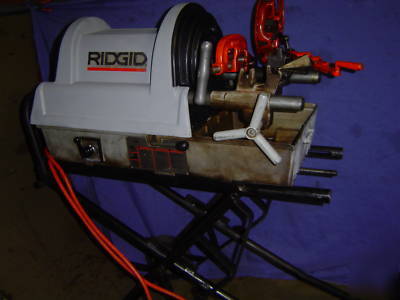

You are looking at a Ridgid 1822 Pipe Threader Machine. It is used, but in excellent working condition. The pan in the back and front are cracked. The front pan crack has been repaired. It includes everything shown in the pictures. As shown in the pictures.
http:// /assets/images/blank1x1.gif
Heavy Duty Automatic Chucking. Threads a wide range of material including black and galvanized pipe, stainless steel, IMC, PVC and heavy-wall conduit.
Induction motor (81 db) delivers constant 45 or 16 RPM as required.
Constant and proper lubrication of dies and workpiece with through-head oiling.
Triple filtration provides for longer oil pump life and clean threads.
Special jaw inserts allow for quick, easy replacement.
1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm) with No. 141 geared threader.
1 1/2 HP, single-phase, 60 Hz or 50 Hz, induction.
Open/Off/Close, heavy-duty rotary type switch and integral safety foot switch.
45 and 16 RPM, right-hand, can be adapted to left-hand operation.
Two-speed (45 RPM for up to 1 1/4" pipe and 1" bolt, 16 RPM for low voltage and higher torque applications).
Model 364, 1/8"-2" full-floating, self-centering with E-1032 Cutter Wheel.
Model 344, 1/8"-2" right-hand only.
