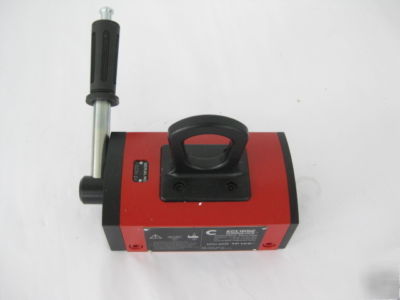

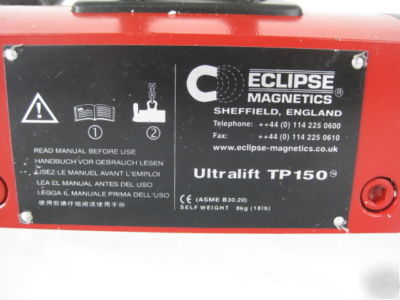

New eclipse magnetics ultralift TP150 load lifter (L1)
Ultralift Plus Measurment Diagram
Ultralift TP Lifting Magnet DESIGNED FOR THIN PLATE LIFTING Why thin plat lifters? Thin plate cannot accept the magnetism from standard lifting magnets. Using standard lifters on thin plate will result in:
* Dramatically reduced performance
* A Lifter designed for thin plate lifting - offering safe lifting

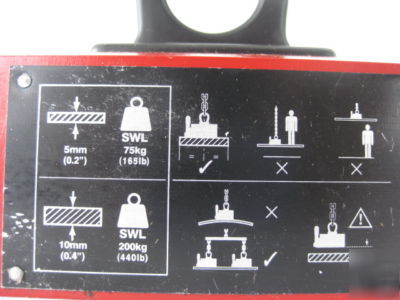

* SWL based on the material thickness
* Guaranteed lifting of single plates
* Two size in the range: TP150 and TP300. Larger plates will require two lifters on a spreader beam.
Liftsafe Solutions Ltd supply a range of spreader beams. These ensure safe lifts are made at all times on longer products. We also supply equipment for allowing the lifting magnet to lift through 90 degrees.
* The lifter is in the off position.
The lifter if in the OFF position
* To switch the lifter ON - Rotate the handle 120 degrees anti-clockwise. Ensure the lever is securely locked in place before commencing with lift.
* The lifter is in the ON position.
The lifter is in the ON position
* To switch the lifter off - Return the load to the floor or support. Depress the plunger on the handle and rotate 120 degrees clockwise to its stop position.
* Release the plunger to complete the switching process.
Release the plunger to complete the switching process
