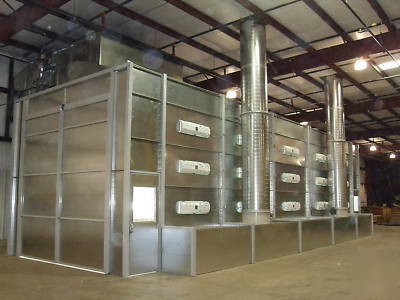

> New 18W x 54L x 16T side downdraft paint spray booth
New 18W x 54L x 16T side downdraft paint spray booth
NEW DIRECT FROM JC METAL FABRICATION INC.
WITH ONE YEAR MANUFACTURER WARRANTY
Built to order-usual build time is 6-8 weeks
INSTALL AVAILABLE FOR ADDITIONAL COST
WE ALSO CUSTOM BUILD ANY SIZE YOU MAY NEED.

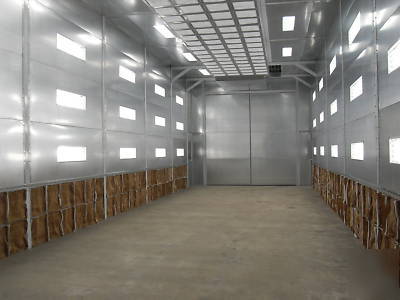

Inside dimensions: 18 wide x 54 long x 16 high
Outside dimensions: approx. 25 wide x 55 long x 22 high

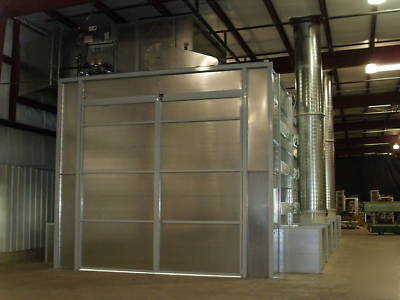

Product doors: opening size 14 high x 14 wide , ( 1 set for each end of booth, door size 7 wide x 14 high (2) per end .)
JC Metal Fabrication Booths are designed, engineered and built to meet the highest standards of quality and safety to conform to OSHA and NFPA regulations.
Large Equipment Booths are constructed of 18 gauge G90 galvanized sheet steel. Panels are pre-punched, companion flanged and bolted on six inch centers for fast assembly. Panels have exterior flanges to provide a smooth interior surface. The booth is rigidly reinforced with 4 tube construction.

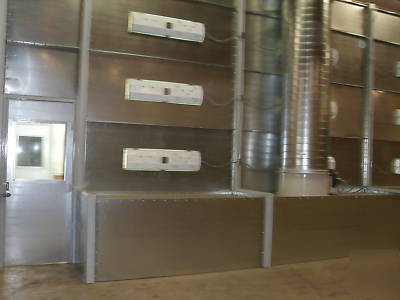

(4) Personnel doors 36 x 84 with window and Brixson Safety Latch

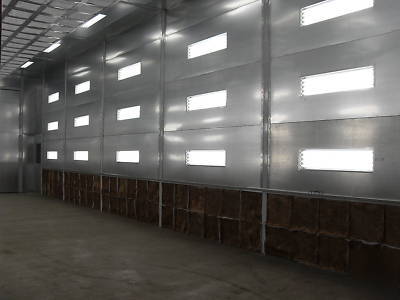

(40) 48 , 4 bulb fluorescent light fixtures, clear tempered safety glass
(4) 34 3hp , 3 phase exhaust fans rated at 11,250 cfm
(2) Sets of product doors, 1 set per end . with Brixson Safety latches

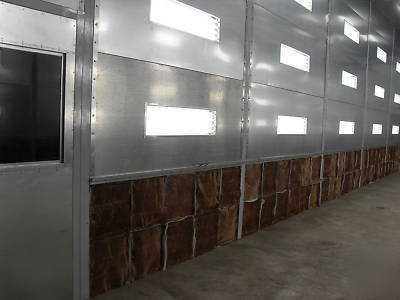

(1) Set of exhaust filters and grids

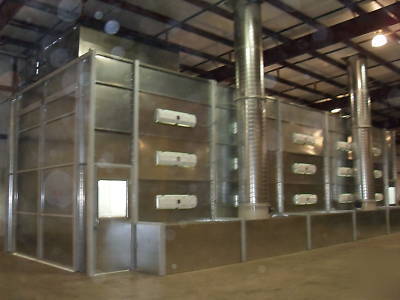

(4) 34 exhaust stacks 20' in length
(4) 34 exhaust stack auto dampers
A FORKLIFT OR LOADING DOCK IS NEEDED.
PLEASE CALL FOR SHIIPPING QUOTE.
Any questions please give us a call
