#10114 - moore #3 g-18 precision jig grinder

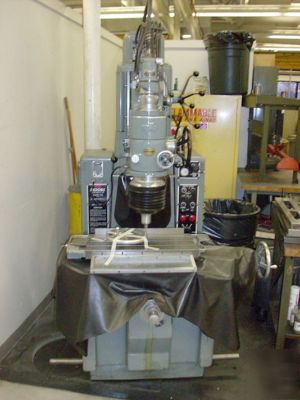

MOORE #3 G-18 PRECISION JIG GRINDING MACHINE
Table top to wheel collet 2" - 18"
Spindle to column ways 13-1/2"
Main spindle speeds (variable) 25 - 225 RPM
Spindle feeds (variable) 2 - 210 cycles/min.
Grind wheel speeds 6,000 - 175,00 RPM (with optional grinding heads)
Grinding capacity 1/64" - 3-1/2" diameter
Angular adjustment of spindle 1-1/2 degrees max.
Overall dimensions 58-1/2" F-B x 57-1/2"L-R x 91" H
(1) Moore high speed grinding spindle
