MS8218 high precision pc auto-range multimeter

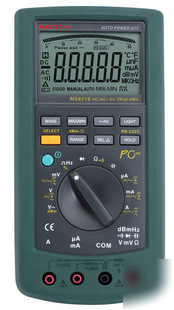

MS8218 High Precision PC Auto-Range Multimeter
MS8218 is a newly developed high-precision, high stability digital multimeter. It uses 24-bit A / D converter, in a single computer under the control of the completion of dozens of kinds of measurements. Its five figures show that up to 50000 counts. With DC, AC RMS, DC + AC mixed-signal up to 1000V RMS voltage, 10A current measurement capability. 1 micro-volt direct current resolution and 20KHz frequency band to meet the majority of the exchange of measurement. It is also a frequency counter, pulse frequency can be detected for more than 2MHz, the linear frequency up to 200KHz, including the current-frequency measurements. 50M great resistance, 5000 F large capacitors, as well as maximum, minimum, relative value, power decibels, diodes, right off the measurement is very useful for technical staff. Large-screen, 180-degree viewing angle make the LCD and backlight display is very clear. MS8218 using software to control and tuning, high stability, non-adjustable components to ensure the long-term stability of the instrument. Instrument comes with optical isolation RS-232C interface and PC computer software, the computer can be displayed on the measurement process, record, mapping. Mapping software has a unique dynamic ruler, making small changes in the measured parameters are clearly depicted record out. MS8218 with a computer has become a multi-purpose measurement logger. Instrument misoperation protection, as well as the second injection casing makes it possible to ensure safety performance. It is the factories, scientific research institutions, school laboratory electrical measurements the best option.
