Bmg labtech nephelostar microplate nephelometer

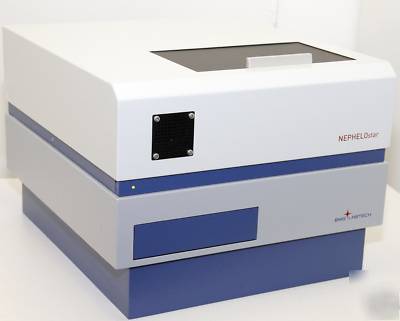

BMG Labtech Nephelostar Microplate Nephelometer
software can still be purchase from Manufactor
new this unit cost over $40,000
The Unique Laser-based Nephelometer
Detects particles in liquid samples by measuring forward scattered light
Solubility screening of compounds
Precipitation and polymerization monitoring
Up to three integrated reagent injectors
Plate shaking, incubation up to 38 C
NEPHELOstar - Technical Specifications
Endpoint and Kinetic measurements
Selectable beam width: 1.5 to 3.5 mm
Scattering angle: Detects up to 80 full cone angle
Depends on particle size and liquid properties
Silica detection (particle size 0.5 to 10 m) 800 nM
Maximum measurement value (1s= 500,000 Relative Nephelometry Units)
Depend on assay conditions and liquid surface stability
Up to 3 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 350 L)
Variable injection speed up to 420 L / s
Up to four injection events per well
Linear, orbital, and double-orbital with user-definable time and speed
System to inject an atmosphere or to pull a vacuum into the reader
License-free software package including Reader Control and MARS Data Analysis software
Width: 44 cm, depth: 48 cm, height: 33 cm
Microplate Incubator and Shaker
Shakes and incubates four microplates simultaneously
Incubation up to 56 C in 1 C steps
Heating plates above and below the microplates
Upgrades to include options such as reagent injectors, gas vent etc. are available. Please contact your local representative for more information.
