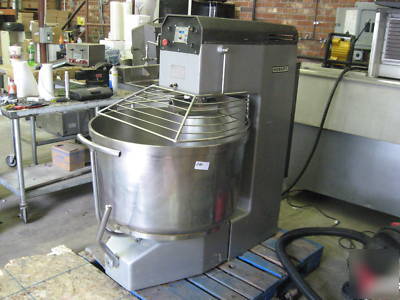

Hobart spiral mixer hr 350
350lb. Capacity Spiral Mixer with Removable Bowl
-Hinged spiral arm and removable bowl = Eliminates fuss, eases bowl removal and maximizes productivity.
-Stainless Steel Bowl= Rugged, long lasting.
-Stainless Steel Wireform Bowl Guard= For at-a-glance observations and easy adding of ingredients without stopping mixer.
-Bi-directional bowl drive= Lets you run small batches. Gives you versatility and high production from a single unit.
-Bowl Drive=Rides on ball bearings, eliminates extra bowl supports and adds durability.
-Bowl Jog Control= Makes it easy to unload, gives you quicker batch turnaround.
-Oil bath gear box= Has sight glass for instant oil level check, ensures long life.
-UL Listed Certified by BISSC.
Motors: high torque, ball bearing, totally enclosed, fan cooled, polyphase squirrel cage, induction run type, the spiral arm motor is two speed, 4/8.5 H.P. The bowl motor is 1.5 H.P.
Electrical: 220/60/3 , 35 Amps.
Drives: The spiral mix arm and the bowl have separate drive systems. Each uses a constant mesh helical gear train that is driven by its motor and multiple belt drive. All gears are lubricated. All shafts run on ball bearings.
Speeds: Spiral arm speed one is 80 RPM. Speed two is 160 RPM. The bowl speed is 20 RPM.
Bowl: polished stainless steel . 350 lbs. of dough, 245 quart capacity.
Bowl trolley: Includes bowl. Handle and lock arm at convenient height. Ball bearing mounted wheels for easy conveying. Interlock switch provided to prevent mixer operation when trolley is not in place.
Hinged spiral Arm: Arm Swings up to allow removal of bowl trolley. A locking screw is used to hold arm in either up or operating position.
Finish: Mixer is finished in gray metallic polyurethane enamel. Top is charcoal gray polyurethane enamel.
Weight: (Approximate) Net: 1,545 lbs.
Dimensions: Bowl Clearance 17 Height in Total 55 Depth in Total 60-1/2
