Neat 340M gpib 4-axis programmable motion controller


Danaher acquired NEAT (New England Affiliated Technologies); so technically it is a Danaher product...
The unit contains four MDM-7 divide-by-10 microstepping high performance stepper motor drive modules. The MDM7 divides each full step into 10 microsteps,providing 2000 steps per revolution from standard 1.8 degree stepping motors and features high speed bipolar chopper output stages, capable of running stepping motors at speeds in excess of 150 revolutions per second. The MDM-7 can be jumpered to drive motors up to 7 amps...!
The unit is rackmountable (as shown) but also has rubber feet for tabletop use.
The manual includes interface/cabling pinouts and specifications, unit configuration, and also information for programming and controlling the unit via GPIB including examples in BASIC.
* NEAT 340M w/GPIB, firmware version 2.5.2, s/n 702353 as pictured
* Neat 300 Series Operator's Manual for firmware version 2.5.2
* MDM-7 High Performance Stepping Motor Driver Operator's Manual

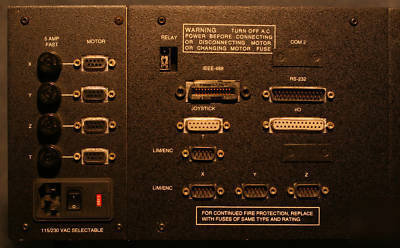

ALL pictures are of the ACTUAL UNIT BEING SOLD.
CONSULTING IS AVAILABLE TO ASSIST YOU IN WRITING PROGRAMS TO DRIVE THIS MOTION CONTROLLER. WE HAVE EXPERIENCE WRITING APPLICATIONS THAT TALK TO IT!!! WE SPEAK LABVIEW (and C and BASIC, FORTRAN, AND A BUNCH OF OTHERS)!!! CONTACT US FOR PRICING AND AVAILABILITY!
WE ALSO CAN UPDATE THE FIRMWARE FOR OTHER NEAT 300 SERIES CONTROLLERS YOU MAY HAVE!!!
