> Shanklin A26A l-bar sealer wrapper w/ t-6XL tunnel
Shanklin A26A l-bar sealer wrapper w/ t-6XL tunnel
For more info on this item click here
1024 E Arlee Place Phone: (***) 991-0427
Anaheim Ca. 92805 Fax: (***) 991-0437
Shanklin A26A L-Bar Sealer Wrapper
Voltage: 230 Volt - 1 PH - 60 Hz @ 20 Amps
* Shanklin A26A accepts randomly spaced product, fed either automatically or by hand.
* Model A-26A power advances the wrapping film while feeding product into the machine.
* Product is conveyed into the machine through a film inverting head where it is wrapped in plastic film. Passing into the sealing area, it starts the discharge conveyor and film advance system, drawing the film and product into the sealing area. Once the product is correctly located in the sealing area, the conveyor stops, the infeed roller on the discharge conveyor retracts from the seal area and the sealing jaws make the seal. After sealing, the product is conveyed away, usually to a shrink tunnel. Simultaneously, the infeed roller extends to provide a smooth transfer for the next product.
* Maximum product size of 15" wide x 21" long x 8" high
* Minimum product size of 2-3/4" long x 3" wide
* 25 to 35 packages per minute
* Up to 45 packages per minute (with High Speed Gearing)
* Height adjuster crank to adjust the height of the seal jaw opening
* 230 V/ 1 Phase / 60 HZ at 20 Amp
* Belt elevation from ground 40"High
* Outfeed belt 40"L x 19 1/2"W

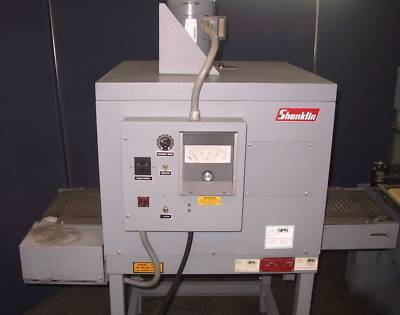

Voltage: 230 Volt - 3 PH - 60 Hz @ 36 FLA
* Tunnel Opening 21"W x 8 3/4"H
* Wire Mesh Belting 59"L x 15"W
* Adjustable Height Settings from 28" to 40" top of belt
* Variable 15 to 120 ft/min conveyor belt
* Leeson 1/2 and 3/4 HP Motors
