Lcr, rcl inductance, capacitance, resistance meter DE3

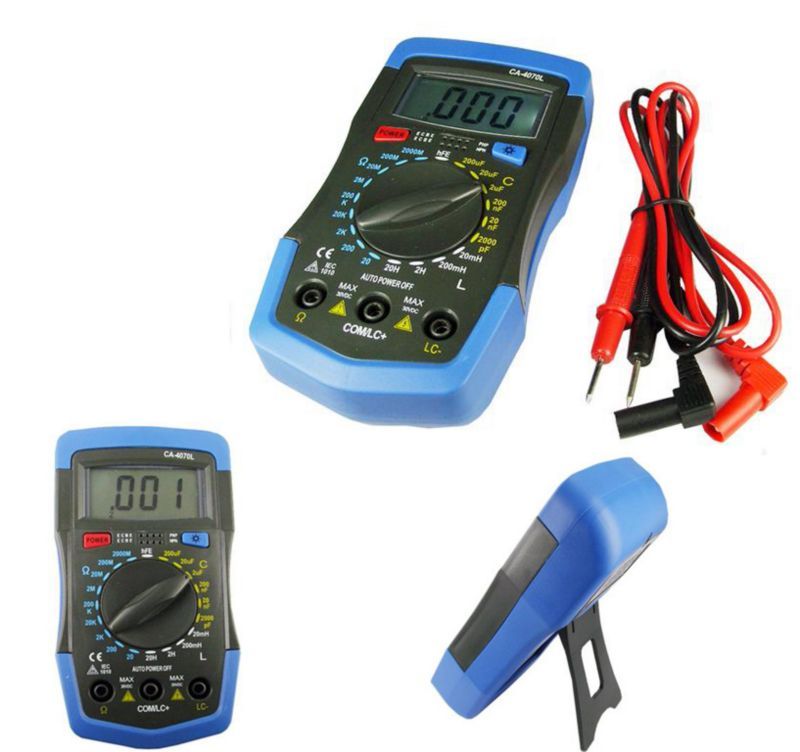

LCR, RCL INDUCTANCE, CAPACITANCE, RESISTANCE METER DE3
6 Capacitance Measuring Ranges : 1pF to 200uF
4 Inductance Measuring Ranges :20mH / 200mH / 2H / 20H, +/- 2.5%, + 5 digits;
9 Resistance Measuring Ranges :20 / 200 / 2K / 20K / 200K / 2M / 20M / 200M / 2000M Ohms, +/- 1. 2 to 5% ;
Transistor hFE Measurement :NPN , PNP hFE ( 10 to 1,000 )
Max Display : "1999", 3 1/2 Digits, Backlight control
Power : 9V DC battery ( 6F22 )
Low battery / overflow indication on display
Operating Temperature / Humidity : 0 -40C, RH<75%
Accessories : Instruction manual, test leads
Charges from 0% to approximately 85% in about 45 minutes
