Erweka ZT72 standard usp disintegration apparatus

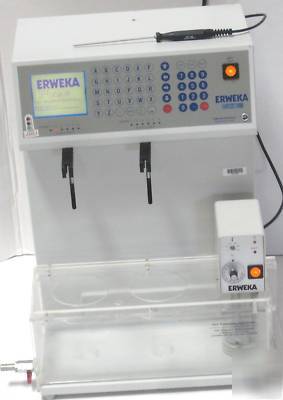

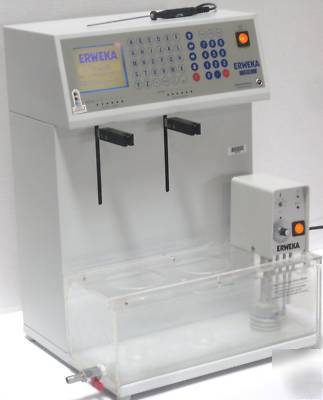

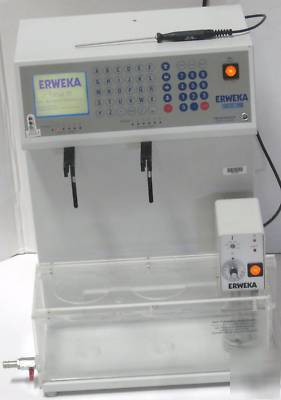

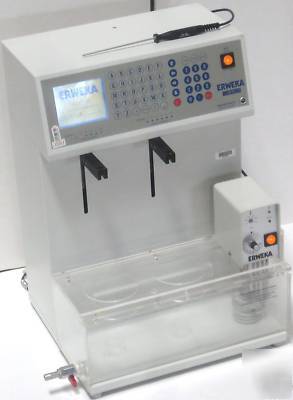

This listing is for a disintergration test apparatus. This listing includes only the pictured items. To the best of my knowledge, the only thing missting is the glassware.
* Model/ Part#: ZT-72 (ZT72)
* Description: Automatic (Auto) Disintegration Test System / Apparatus
* Number of Test Stations: 2
* Determination of the Disintegration Time: By a special system which incorporates a ring-magnet in the USP style Disintegration Disc an a sensor under the Test Station. This System allows to analyse samples which disintegrate completely as well as samples which leave debris such as coating material or gelatine. The thickness of the debris on completion of the test-run can be entered in steps of 0.1 mm.
* Programme Menu" Allows to store information as well as minimum/average/maximum Disintegration Time of up to 60 products
* Drive of Test-Stations: Each Test Station runs independently. 30 strokes/min.; accuracy +/- 1
* Lift-IN and Lift-OUT of Basket Rack Assembly/ies: Automatic at the start and on completion of the run-time
* Height of Stroke: 55 mm +/- 2 mm
* Basket Rack Assembly/ies: USP, with 6 Stations and Quick Cleaning Function
* Water Bath: Acrylic Glass with removable top-plate
* Heating System: Immersion Thermostat, 1.500 Watts at 230V; accuracy +/- 0.5 C
* Temperature Control: Electronic PT 100 temperature sensor. Calibration by the programme menu
* Keypad: Alpha-Numeric Membrane Keypad with Function Keys
* Display: 320 Digit 16-line graphic LC Display, illuminated
* Interfaces: Serial RS 232 interface for external control by the ERWEKA Disintegration Software. Parallel Printer Port for hard-copy of results, statistics, temperature and calibration
