Koolant kooler chiller & marley water cooling tower
3-TON KOOLANT KOOLER WATER CHILLER & MARLEY "AQUATOWER" WATER COOLING TOWER COMBINATION
A COOLING TOWER KEEPS THE HEAT FROM THE CHILLER OUT OF YOUR WORK AREA
AND HELPS MAINTAIN AMBIENT HUMIDITY.
Koolant Kooler Chiller Specifications:- Model: HCW 3000PR-NF (NF = NON-FERROUS. AVOIDS RUST IN YOUR EQUIPMENT)
- Overall Dimensions: 30" Wide x 52 " Deep x 52" Tall
- 220 VAC 13.23 Amps 3 Phase Pump 1.5 HP Compressor 3.0 HP
- Weight (no water in tank): 950 lbs. Crated 1,150 lbs.
- OEM Contact Info: DIMPLEX THERMAL SOLUTIONS 2625 Emerald Drive, Kalamazoo, MI 49001-4542
(***)-968-5665 Fax: (***)-349-8951 ****@dimplexthermal.com

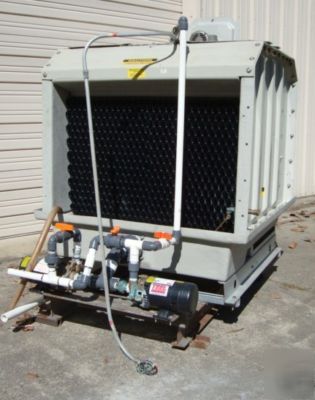

Marley Cooling Tower Specifications:- Model: AquaTower 3816
- Overall Dimensions: 56" Wide x 82" Deep x 74" Tall
- 2 Pump Motors (each @) 120/220 VAC 11.4/5.7 Amps Single Phase 3/4 HP
- Fan Motor: 208-230/480 VAC 2.7-2/1 Amps 3 Phase .5 HP
- Weight: 550 lbs. (includes hook up piping & filters ... uncrated) Crated Wt: 850 lbs.
over the unit or it will be damaged. There is a frame that is used for chaining to truck. I'd crated it.
- This assembled unit has very specific lifting instruction and has lift rails that
require 7' - 8' (8' recommended) extensions. It must be lifted from the pump motor
- OEM Contact Info: SPX Cooling Technologies, Inc. 7401 West 129 Street, Overland Park, Kansas 66213
TEL: (***)-322-6200 FAX: (***) 664 7439 ****@ct.spx.com
If you call & get a recording, leave a message ... they actually call back same day.
These two units are operated together. The Koolant Kooler is water cooled by the Marley Cooling Tower.
The were in service at the time of removal with low usage hours. They are only offered together.
Koolant Kooler is currently manufactured and serviced under the Koolant Kooler name by the Dimplex Corp. This unit was just tested with phone assistance from their service manager, Reuben Pancheco. The test confirmed both the pump and compressor operated correctly. This test can be demonstrated on our premises. Only the compressor light needs to be replaced. Current price for this unit is $13,500.00 The Marley Cooling Tower is currently manufactured and serviced under the Marley name by SPX Technologies, Inc.
See our Used Equipment Sales Agreement below. We are not a used equipment dealer. Pickup here at no charge. 24 hr. notice for pickup.
No rear ramp trailers loaded here unless rear door is removable.
These can be steel banded to pallets for $170.00.
A custom oversize pallet will be required for the Marley Cooling Tower. Please inquire for price.
Crating is available by professional craters in next building.
Crating is strongly recommended for both units, but especially the fiberglass Marley Cooling Tower.
Please inquire for crating charges.
Units are available for inspection in Santa Rosa, CA by appointment. Call Gary (***)-653-1553 for additional information.
Please take a look my other items & thanks for looking here.
The purchaser hereby agrees to hold UR Unlimited, its partners, heirs and assigns harmless for any accident or injury sustained from the purchase and subsequent use of this machinery/ equipment. The purchaser agrees to indemnify UR Unlimited, its partners, heirs and assigns for any and all losses, costs, fines, damages and penalties of every kind and description now and in the future.
Purchaser hereby acknowledges UR Unlimited, its agents, employees, representatives and partners have not made any statement as to the condition and character of the equipment which induced the purchaser to purchase the equipment other than the equipment is in good condition.
The purchaser assumes all responsibility to ensure that the machinery meets all federal, state, local and OSHA safety requirements. The purchaser assumes all responsibility to train it employees/operators in the correct and safe maintenance and operation of the machinery/equipment.
