Hp/agilent E4440A spectrum analyzer w/ option

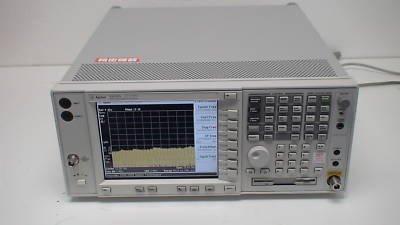

HP/Agilent E4440A PSA Series Spectrum Analyzer, 3 Hz - 26.5 GHz , with option 1DS, B7J, 204, + 226 tested good. Cal Cert by YRL thru 2/2011
The Agilent E4440A PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz.
* +/-0.19 dB absolute amplitude accuracy
* -155 dBm displayed average noise level (DANL)
* -118 dBc/Hz phase noise at 10 kHz offset
* 81 dB W-CDMA ACLR dynamic range
* Standard 10 MHz analysis bandwidth.
* Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals.
* -78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth.
* up to 300 MHz analysis bandwidth for calibrated VSA measurements.
* Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
* Power suite enables one-button power measurements for over 20 radio formats
* Option 1DS: 3.0 GHz Preamplifier
* Option B7J: Digital Demodulation Hardware
* Option 204: 1xEV-DO Measurement Personality
* Option 226: Phase Noise Measurement Personality
This unit also includes a Power Core and Manual
